Smooth Surface Plastic Recycling 10cm Stainless Steel Filter Mesh Screen

Smooth Surface Plastic Recycling 10cm Stainless Steel Filter Mesh Screen

  • Smooth Surface Plastic Recycling 10cm Stainless Steel Filter Mesh Screen
  • Smooth Surface Plastic Recycling 10cm Stainless Steel Filter Mesh Screen
Smooth Surface Plastic Recycling 10cm Stainless Steel Filter Mesh Screen
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: ISO9001
Model Number: FS-030
Payment & Shipping Terms:
Minimum Order Quantity: 1 Roll
Price: Be Negotiation
Packaging Details: Plastic Film And Then Wooden Box
Delivery Time: 5-8 Days After Get The Payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 30000 Pcs Per Week
Contact Now
Detailed Product Description
Product Name: Stainless Steel Filter Screen Type: Filter Screen
Key Words: Continuous Belt Screens Usage: For Continuous Screen Changers
Product Length: 10 M/roll And Special Orders Are Accepted Material: Stainless Steel
Characteristics: Precise Fitting Filter Elements Size: Customized
Feature: Corrosion Resistance Belt Width: 10Cm, 12 Cm, 15 Cm,
High Light:

10cm stainless steel filter mesh screen

,

12cm stainless steel filter mesh screen

,

smooth surface micron stainless steel mesh

Anti Corrosion Stainless Steel Filter Mesh For Continuous Screen Changer





Stainless Steel Mesh Filter Belt Specification



Popular Sizes of Continuous Belts Filter



Mesh Size (warp/inch × weft/inch) Wire diameter (mm) (warp × weft) The fineness of filtering (micron) Weight (kg/m2) Width (mm) *
48 × 10 0.5 × 0.5 400 3.63 40–210
63 × 18 0.4 × 0.6 220 4.14 40–210
72 × 15 0.45 × 0.55 250 4.78 40–210
100 × 16 0.35 × 0.45 190 3.87 40–210
107 × 20 0.24 × 0.60 210 3.34 40–210
120 × 16 0.35 × 0.45 180 4.49 40–210
132 × 17 0.32 × 0.45 170 4.24 40–210
152 × 24 0.27 × 0.4 160 3.73 40–210
160 × 17 0.27 × 0.45 160 2.02 40–210
170 × 18 0.27 ×0.45 160 4.01 40–210
171 × 46 0.15 × 0.30 130 2.00 40–210
180 × 20 0.27 × 0.45 170 4.29 40–210
200 × 40 0.17 × 0.27 120 2.17 40–210
240 × 40 0.15 × 0.25 70 1.98 40–210
260 × 40 0.15 × 0.27 55 2.19 40–210
290 × 76 0.09 × 0.19 40 1.27 40–210
300 × 40 0.15 × 0.25 50 2.31 40–210
300 × 80 0.15 × 0.2 35 2.49 40–210
Special specifications can be customized upon customers' requirements
* Maximum width is 500 mm.



Stainless Steel Mesh Filter Belt Description



PFM offers a belt or ribbon type stainless steel wire mesh filter screen for plastic extrusion in replacement of conventional extruder screen packs. The woven mesh screen is Reverse Dutch Twill Weave Wire Mesh supplied in belt or ribbon type or band. Woven from quality Stainless steel 304, 304L, 316, 316L, etc stainless steel fine wire. Designed to work with automatic continuous screen changers used on the plastic extruders.



Stainless Steel Mesh Filter Belt Features



Smooth surface,

High hardness,

Network continuously,

Not deformation,

High-temperature resistance,

Corrosion resistance,

The advantages of a flexible network, has excellent filtering performance.



Stainless Steel Mesh Filter Belt Application

Suitable for Austrian Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, stretch film machine, coating machine filters,
Used in plastic woven bag, plastic film industries, etc,
Widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and plastic melt filter, molding machine belt type filter conveyor industries.

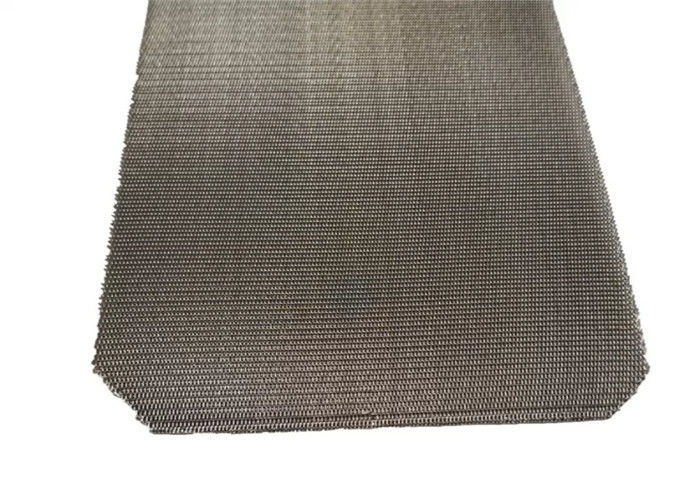

Smooth Surface Plastic Recycling 10cm Stainless Steel Filter Mesh Screen 0

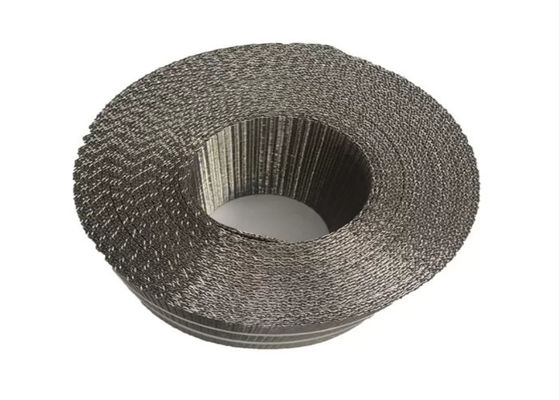

Smooth Surface Plastic Recycling 10cm Stainless Steel Filter Mesh Screen 1
