| Product Name: | 10 Mesh 20 Mesh 30 Mesh Wire Mesh Extruder Screen Packs | Type: | Extruder Screen Packs |
|---|---|---|---|
| Material: | Stainless Steel | Packs Diameter: | 20mm - 900 Mm |
| Characteristics: | Precise Fitting Filter Elements | Feature: | Corrosion Resistance |
| Size: | Customized | Product Length: | 10 M/roll And Special Orders Are Accepted |
| High Light: | 10mesh stainless steel filter mesh screen,20mm stainless steel filter mesh screen,20mm stainless steel filter screen |
||

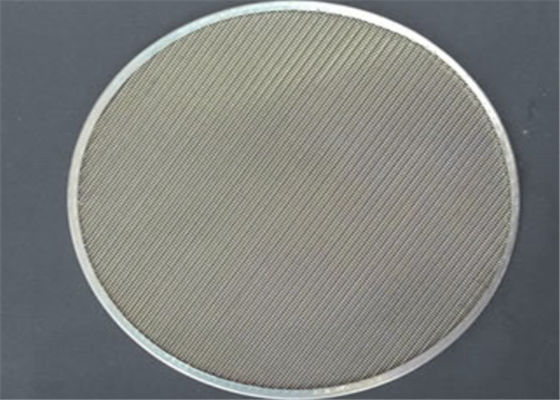

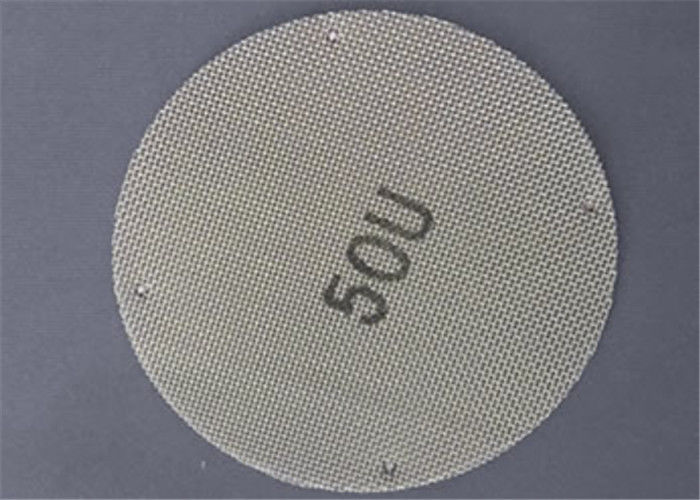

10 Mesh 20 Mesh 30 Mesh Wire Mesh Extruder Screen Packs For Polymer Melt Filters
Wire Mesh Extruder Screen Packs Introduction
Extruder screens provide a clean and clear extrusion for the melt filtration and plastic extrusion processing machinery. This pack screen filter is designed to keep away mixing of foreign particles in finally equipped extrusion product. Also called polymer filter or melt filter screen. Extruder Screen Mesh packs are mainly made from high quality SS 316, SS304L meshes ranging from 4 mesh to 500 mesh up to 5 microns, and used for Plastic and Rubber Industry. Their edges styles cover spot welded edges and aluminum framing around the spot welded edges
Wire Mesh Extruder Screen Packs Parameters
| Product Name | 20 Mesh 40 Mesh Extruder Screen Filte |
| Material | Stainless Steel Or Mild Steel |
| Mesh Type | 20Mesh 40Mesh |
| Weave Type | Plain, dutch & twill. |
| Layer | Single or multilayers |
| Screen Shape | spot-welded round packs, welded round packs, round packs with or without rims, cylinder, candle, and kidney-shaped. |
Wire Mesh Extruder Screen Packs Major types
Extruder screen filter disc, circular screen, Multilayer extruder screen packs. Spot welded and with or without aluminum frame Layer: single layer or multilayer.
Wire Mesh Extruder Screen Packs Data List
| Standard Extruder Screen Filter Media Specification | |||
|
SS Mesh
|
Wire Dia. mm
|
Aperture Size mm
|
Open Area
|
|
10 X 10
|
0.711
|
1.829 MM
|
51.8
|
|
14 X 14
|
0.457
|
1.357 MM
|
55.9
|
|
16 X 16
|
0.457
|
1.131 MM
|
50.7
|
|
20 X 20
|
0.457
|
0.813 MM
|
41.0
|
|
24 X 24
|
0.376
|
0.682 MM
|
41.4
|
|
30 X 30
|
0.376
|
0.531 MM
|
34.2
|
|
30 X 30
|
0.310
|
0.536 MM
|
40.0
|
|
40 X 40
|
0.274
|
0.361 MM
|
32.3
|
|
50 X 50
|
0.193
|
0.335 MM
|
43.6
|
|
60 X 60
|
0.193
|
0.230 MM
|
29.8
|
|
80 X 80
|
0.122
|
0.196 MM
|
37.9
|
|
100 X 100
|
0.102
|
0.152 MM
|
36.0
|
|
120 X 120
|
0.091
|
0.120 MM
|
31.8
|
|
150 X 150
|
0.071
|
0.088 MM
|
29.6
|
|
200 X 200
|
0.050
|
0.077 MM
|
36.76
|
|
300 X 300
|
0.040
|
0.045 MM
|
27.83
|
|
325 X 325
|
0.035
|
0.043 MM
|
30.49
|
|
400 X 400
|
0.028
|
0.036 MM
|
31.25
|
Wire Mesh Extruder Screen Packs Features
Multi-layer extruder screen filter packs are extra strong, sturdy and convenient for problem free processing;
Can be assembled in proper sequence to eliminate operator error;
The screen pack even prevents any foreign particles in the molten mass from going through the extrusion process;
This type of extruder screen is suitable for fine extrusion, and it makes extrusion more clean and clear.
Wire Mesh Extruder Screen Packs Application
It is widely used in filtering of gas and liquid, separating of oter medium, precise stress filter, fuel filter, vacuum filter, etc. it is widely used in the field of petroleum, chemical industry, chemical fiber, rubber, metallurgy, medicine and food. It also has different sizes and bears the advantages of acid-resistance, alkali-resistcance, hot-resistance, high tensile strength, wear-resistcance, etc.
