Chain Link Fence Post 50mm Ferrule Winders

Chain Link Fence Post 50mm Ferrule Winders

  • Chain Link Fence Post 50mm Ferrule Winders
  • Chain Link Fence Post 50mm Ferrule Winders
Chain Link Fence Post 50mm Ferrule Winders
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: ISO
Model Number: WS
Payment & Shipping Terms:
Minimum Order Quantity: 3 Unit
Price: Negotiation
Packaging Details: Package Film For Each 10 Piece,Several Pieces Packed In 1 Carton
Delivery Time: 7-10 Days After Get The Payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 3000 EA Per Month
Contact Now
Detailed Product Description
Product Name: Wire Tensioning Winder Gram Weight: 192G
Material: Iron Steel Surface Treatment: Galvanized
Length: 89MM Height: 20mm,25mm,30mm
Width: 30mm,35mm,45mm Application: Fix On Post
High Light:

Ferrule Locking Winders


50mm Ferrule Winders


chain link fence ferrule winders

Ferrule Locking Winders - Chain Link Fence Post Wire Strainer 50MM Ferrule



Ferrule Locking Winders Introduction

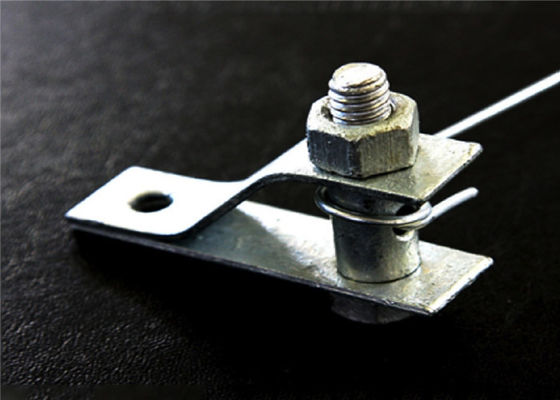

Galvanised ferrule locking winders are used with steel angle-iron chain link fencing posts to tension the line wire to keep the chain link mesh taut, and strong between the metal posts. The ferrule winders can be bolted through the holes in the chain link posts. The staining line is fed into the winder and wound until the correct tension on the wire is achieved.


Ferrule Locking Winders Usage


50mm Galvanised ferrule winders used with chain link fencing when tensioning the line wire. Ferrule winders are an alternative way of tensioning the wire instead of using folded eye bolts.

You may require other parts such as angle cleats and stretcher parts which can be found here.


Chain link fencing accessories such as stretcher bars, angle cleats, ferrule winders, tying wire, line wire and folded eye bolts and loop adaptors. We have 25m rolls of chain link in PVC green or galvanized available to us within 3 days of order. Take a look through our chain link category


Ferrule Locking Winders Detailed Specification


Product Name Winder
Material Mild Steel
Finish Galvanized or green powder coated available
Drilled hole The drilled hole for fixing the winder onto the post is suitable for an M8 bolt.


How to Use Ferrule Locking Winders?

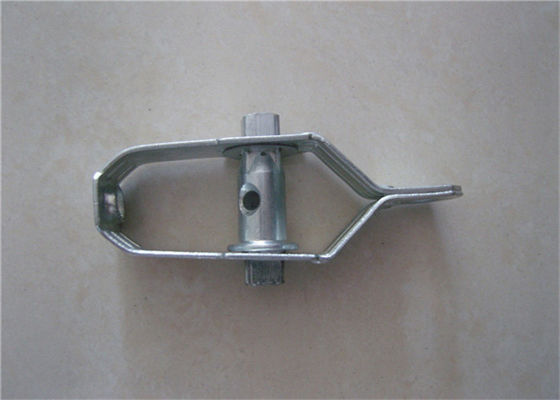

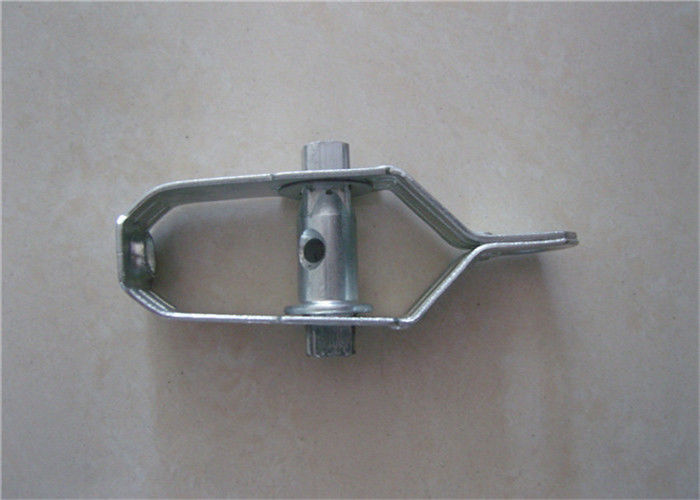

  1. The tensioner is a barrel winder. It is bolted onto the post, the line wire is then fed through a hole on the barrel. You then use a spanner to turn the barrel, and as the line wire wraps around the barrel it tensions the wire.
  2. It is not a separate ratchet tool for tensioning the wire, it is a fitting to be fixed onto the post.
  3. It used in chain link fence, wire fencing, vineyard trellis,barbed wire, euro fence, filed fence and so on, to tie the wire at corner or end post.


Wire Tensioning Winders Advantages


Wire tensioner, use good tensile strength steel plate to make,

have hot dipped galvanised or powder coated surface treatment.


 Shipping way


  • By sea through Tianjin XinGang Port (FCL,LCL)
  • By air through Tianjin or Beijing airport
  • By express(TNT,DHL,FEDEX)


Chain Link Fence Post 50mm Ferrule Winders 0Chain Link Fence Post 50mm Ferrule Winders 1
