| Place of Origin: | CHINA |
| Brand Name: | XR |
| Certification: | CE |
| Model Number: | EX-AL |
| Minimum Order Quantity: | 50 Sqm |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Pallet , Wooden Case |
| Delivery Time: | 5-8 Days After Get The Payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000Sqm/week |
| Color: | Silver,Blue+OEM | Application: | Curtain Wall , Facade Cladding , Ceiling Decorative |
|---|---|---|---|
| Material: | Aluminum Sheet | Technique: | Expanded |
| Item: | Decorative Facade Cladding Mesh | Feature: | Durable |
| High Light: | decorative metal mesh panels,decorative mesh screen |
||

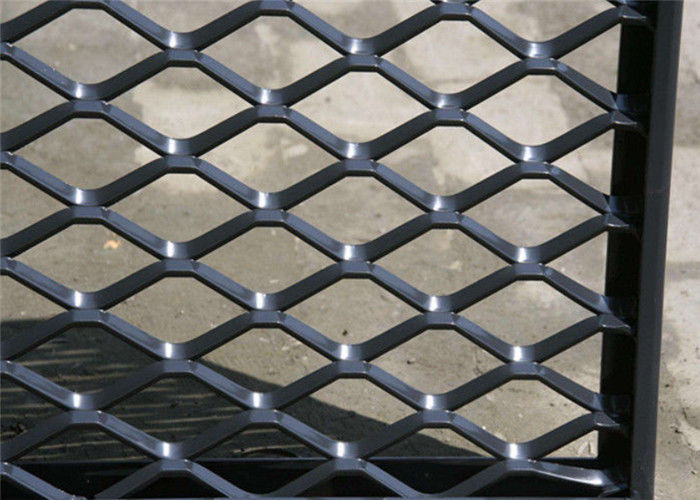

4-100mm LWD Decorative Aluminum Expanded Metal Mesh Woven Facade Cladding
Aluminum Expanded Metal mesh is formed in an expanding press. The basic metal is simultaneously slit and cold-formed, which expands the slits into diamond shaped openings of uniform size and regularity. Aluminum Expanded metal mesh is a form of metal stock made by shearing a metal plate in a press, so that the metal stretches, leaving diamond-shaped voids surrounded by interlinked bars of the metal. The most common method of manufacture is to simultaneously slit and stretch the material with one motion.
Specifications of aluminum expanded metal mesh
| Thickness | SWD | LWD | Strip | Width | Length | Weight |
| 0.5MM | 2.5MM | 4.5MM | 0.5MM | 0.5M | 1.0M | 1.8KG/M2 |
| 0.5MM | 10MM | 25MM | 0.5MM | 0.6M | 2.0M | 0.73KG/M2 |
| 0.6MM | 10MM | 25MM | 1.0MM | 0.6M | 2.0M | 1.0KG/M2 |
| 0.8MM | 10MM | 25MM | 1.0MM | 0.6M | 2.0M | 1.25KG/M2 |
| 1.0MM | 10MM | 25MM | 1.1MM | 0.6M | 2.0M | 1.77KG/M2 |
| 1.0MM | 15MM | 40MM | 1.5MM | 2.0M | 4.0M | 1.85KG/M2 |
| 1.2MM | 10Mm | 25MM | 1.1MM | 2.0M | 4.0M | 2.21KG/M2 |
| 1.2MM | 15MM | 40MM | 1.5MM | 2.0M | 4.0M | 2.30KG/M2 |
| 1.5MM | 15MM | 40MM | 1.5MM | 1.8M | 4.0M | 2.77KG/M2 |
| 1.5MM | 23MM | 60MM | 2.6MM | 2.0M | 3.6M | 2.77KG/M2 |
| 2.0MM | 18MM | 50MM | 2.1MM | 2.0M | 4.0M | 3.69KG/M2 |
Expanded Metal Mesg Different Type Different Holes Shown
Product Image
We can manufacture according to your specific requirements.
Please indicate parameters below when you ask for a quotation
