Aisi 430 Razor Wire Concertina For Security Fence / Prison Fence

Aisi 430 Razor Wire Concertina For Security Fence / Prison Fence

Aisi 430 Razor Wire Concertina For Security Fence / Prison Fence
video
Aisi 430 Razor Wire Concertina For Security Fence / Prison Fence
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: CE
Model Number: WRW
Payment & Shipping Terms:
Minimum Order Quantity: 6 Square Meters
Price: Negotiated
Packaging Details: Pallet
Delivery Time: 7-10 days after get the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 Tons Per Month
Contact Now
Detailed Product Description
Name: Welded Razor Wire Fencing Zinc Coated: Galvanized Wire:8-60g/m2;Blade:40-60g/m2 Or As Customer's Req
Material: Galvanized And Stainless Steel Mesh Aperture: 75x150Mm
Panel Size: 1x2M,2x4M,4x8M Barb Length: BTO10 12 18 22 28 30 CBT60 65
Height: 1.2/1.5/1.8/2.1/2.4M Application: Security And Safety
High Light:

Aisi 430 Razor Wire Concertina

,

Razor Wire Concertina hdg

,

hdg Diamond Mesh Razor Wire

Welded Flat Razor Wire Mesh AISI 430 Concertina Razor Wire For Security Fence Or Prison Fence





Concertina Razor Wire Information

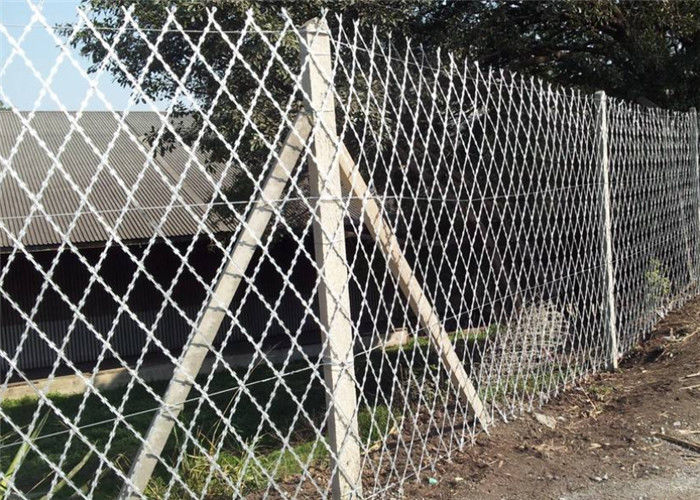

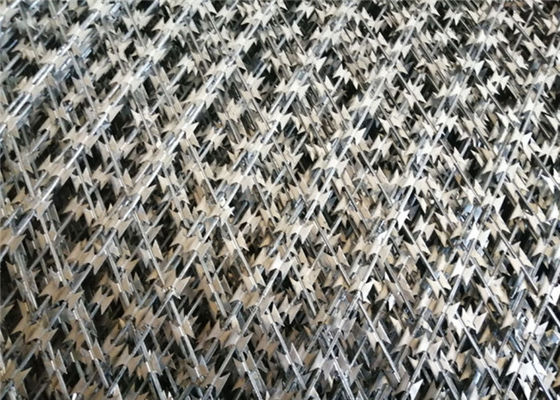

It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.



Concertina Wire Materials



Blade: steel plate by one-time punching moulding
or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire
hot dipped galvanized steel wire
or stainless steel wire



Concertina Wire Surface Treatment



Electro Galvanzied

Hot Dip Galvanized

PVC Coated



Razor Wire Fence Hole Type



1. Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.

2. Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.



Peference

number

Thickness

(mm)

Wire dia

(mm)

Barb length

(mm)

Bard width

(mm)

Bard spacing

(mm)

BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2



Barbed Tape Wire Specification
Loop Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9m(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type



Razor Wire Character



  • 1.Easy installation;
  • 2.Use a long time
  • 3. Strong Protection



Razor Wire Usage



1. Concertina Razor wire is widely used to manufacture the wire fence for a fencing system or security system.
2.

Concertina Razor wire is applicable in military field,airports fencing,prisons protection,detension houses, government buildings and other national security facilities.



3. Concertina Razor wire can be installed in the form of barbed tape wire or concertina coil to walls or fencing.



Aisi 430 Razor Wire Concertina For Security Fence / Prison Fence 0
