Welded High Grade Protective BTO28 Diamond Razor Mesh Fence 1.5m Height

Welded High Grade Protective BTO28 Diamond Razor Mesh Fence 1.5m Height

Welded High Grade Protective BTO28 Diamond Razor Mesh Fence 1.5m Height
video
Welded High Grade Protective BTO28 Diamond Razor Mesh Fence 1.5m Height
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: CE
Model Number: WRW
Payment & Shipping Terms:
Minimum Order Quantity: 6 Square Meters
Price: Negotiated
Packaging Details: Pallet
Delivery Time: 7-10 days after get the payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 Tons Per Month
Contact Now
All Products
Chain Link Fence Fabric (109)
Chain Link Fence Fittings (102)
Chain Link Mesh Fence (104)
Stainless Steel Wire Rope Mesh (159)
Stainless Steel Filter Mesh Screen (79)
Farm Fence Wire Tensioner (51)
Razor Wire Concertina (86)
Decorative Metal Mesh (38)
Expanded Metal Mesh (13)
Welded Wire Gabions (11)
Chain Link Fence Band (16)
Chain Link Fence Rail End (9)
Chain Link Fence Post Caps (8)
Wire Mesh Machine (19)
Barbed Wire Extension Arm (24)
Stainless Steel Safety Gloves (27)
Perforated Metal Mesh (12)
Detailed Product Description
Keyword: Welded Razor Wire Fencing Zinc Coated: Galvanized Wire:8-60g/m2;Blade:40-60g/m2 Or As Customer's Req
Material: Galvanized And Stainless Steel Mesh Aperture: 75x150Mm
Panel Size: 1x2M，2x4M，4x8M Barb Length: BTO10 12 18 22 28 30 CBT60 65
Height: 1.2/1.5/1.8/2.1/2.4M Name: Welded High Grade Protective BTO28 Diamond Razor Mesh Fence 1.5m Height
High Light:

BTO28 Diamond Razor Mesh Fence

,

Diamond Razor Mesh Fence 1.5m Height

,

BTO28 Diamond Razor Wire Fence

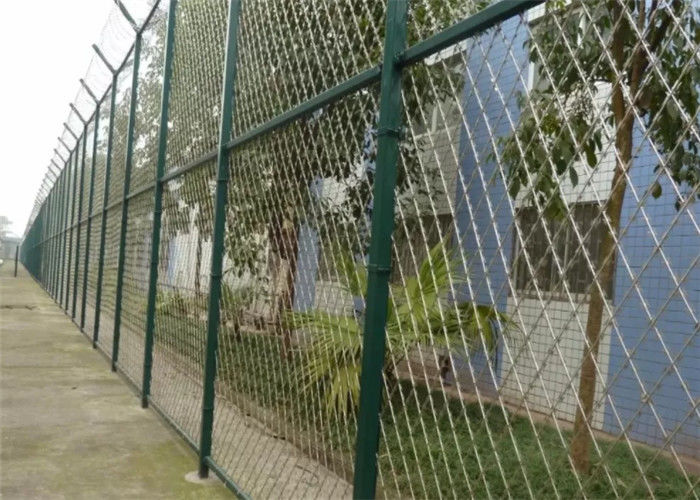

Concertina Coil Wire On Top Of Welded Razor Mesh Forms A High-Grade Protective Fence





This welded razor wire mesh security fence product is almost impossible to climb or cut off with the standard tools, also it has a neat appearance.

Welded razor wire mesh is installed in various parts of the world's airports, military bases, water substation, the border fence, oil depots, factories and so on.



Product Material



Hot-dipped galvanized core wire+stainless steel blade
Hot-dipped galvanized core wire and blade
Electro galvanized core wire and blade
PVC coated core wire and blade
Stainess steel core wire and blade



Product Feature



Anti-corrosion, aging, sunscreen, weather.
High-strength steel core very difficult to cut off.
High protection, it is almost impossible to climb.
Anti-corrosion, aging, sunscreen, weather.
Extremely simple to install, needs three to four to install molding.



Welded razor wire fence Hole Type



1. Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.

2. Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.



Peference

number

Thickness

(mm)

Wire dia

(mm)

Barb length

(mm)

Bard width

(mm)

Bard spacing

(mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2



Barbed Tape Wire Specification
Loop Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9m(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type


Product Advantage



Strong Protection;
Easy installation;
Use a long time



Product Usage



1. Concertina Razor wire is widely used to manufacture the wire fence for a fencing system or security system.
2.

Concertina Razor wire is applicable in military field,airports fencing,prisons protection,detension houses, government buildings and other national security facilities.


3. Concertina Razor wire can be installed in the form of barbed tape wire or concertina coil to walls or fencing.



Welded High Grade Protective BTO28 Diamond Razor Mesh Fence 1.5m Height 0Welded High Grade Protective BTO28 Diamond Razor Mesh Fence 1.5m Height 1
