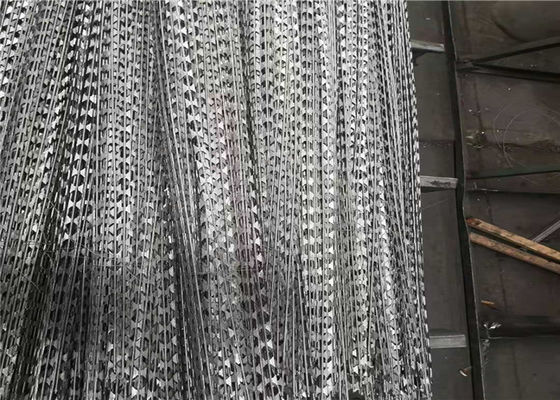

BTO-22 Welded Prison Razor Barbed Wire Fence

BTO-22 Welded Prison Razor Barbed Wire Fence

BTO-22 Welded Prison Razor Barbed Wire Fence
BTO-22 Welded Prison Razor Barbed Wire Fence
Product Details:
Place of Origin: China
Brand Name: XR
Certification: CE
Model Number: CRBW
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Negotiated
Packaging Details: Water-Proof Plastic Film And Then Pallets
Delivery Time: 5-8 Days After Get The Payment
Payment Terms: T/T, Western Union, D/P, L/C, MoneyGram
Supply Ability: 500 MT Per Week
Contact Now
Detailed Product Description
Name: Welded Type Concertina Razor Barbed Wire Packing: Inside Waterproof Paper
Material: Stainless Steel Mesh Size: 50*100Mm 75*150Mm 150*300Mm
Technique: Welded Panel Szie: 1x2M,2x4M,3x6M
High Light:

Prison Razor Barbed Wire Fence


Welded Razor Barbed Wire Fence


BTO-22 Razor Barbed Wire Fence


500Mm Durable Barbed Tape Stainless Steel Razor Wire Punched Tape Concertina Coil




Welded Razor Wire Mesh Fence Feature


  • Extremely hard to cut with standard tools.

  • Galvanized steel, stainless steel, and Powder coated with custom colors are available.

  • Nearly impossible to climb.

  • Away from the need for fence topping when installed.​

Welded Razor Wire Mesh Fence Introduction


The razor mesh fence is a new type of safety fence welded by straight type razor wire. It is usually welded into a square or diamond shape. This kind of razor wire mesh fence is impossible to climb and cut because it has sharp barbs and strong wire. The typical feature of razor mesh fence is that it’s a complete security fence requiring no additional top options when installed.

High tensile core wires are welded in a diamond shape or square shape with razor blades, acting as additional deterrent or means on entrapment. This creates an effective barrier which is not just impossible to climb, but resistant to cutting as well.

Welded Razor Wire Mesh Fence Hole Size
Welded Razor Wire Fence Made By Straight Blade Netting Welded Together 0

Welded Razor Wire Mesh Fence Razor Type


Reference Number Thickness(mm) Wire Dia(mm) Barb Length(mm) Barb Width(mm) Barb Space(mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2

Razor mesh security fence the benefits

1 it is almost impossible to climb
2 high-strength steel core very difficult to cut off
3 powerful security fence barriers neat appearance
4 no secondary use, so he will not be stolen
5 extremely simple to install, needs three to four to install molding.

Welded Razor Wire Mesh Fence Application:


BTO-22 Welded Prison Razor Barbed Wire Fence 1

BTO-22 Welded Prison Razor Barbed Wire Fence 2
