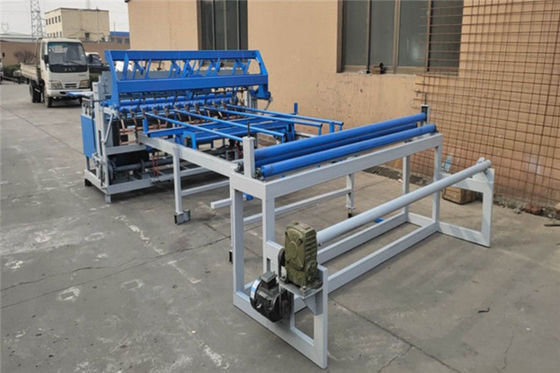

Welded Steel Full Automatic Wire Mesh Welding Machine For Panel And Roll Mesh
Panel Welding Machine Parameter
| Model | WM-005 | Wire diameter | 2.5-6.0 mm |
| Line wire distance | 100-200 mm | Cross wire space | 100-200 mm |
| Line wire feeding | by wire feeding car | Cross wire feeding | pre-cut wire |
| Welding speed | 40-60 times/min | Rated power | 125KVA X 6 |
| Mesh width | Max.2500mm | Welding points | 48 |
| Length wire mesh | adjust | Overall Size | 8.0*2.5*1.8m |
Panel Welding Machine Detailed Description
1. The automatic wire mesh welding mahcine is our latest machine. The wire mesh welding machine can produce both mesh panel and roll mesh.
2. The longitudinal wire is from coil wire. The cross wire is pre-cut. The machine will pull the mesh back and forward.
3 The machine can welding wire diameter range from 2.5--5.5mm.
4 The automatic wire mesh welding machine adopts PLC system. Very easy to operate. The control cabinet has touch screen.
5 The wire mesh welding machine produce width of mesh max 2500mm. The mesh opening min 50x50mm max 300x300mm. The mesh opening can be adjustable according to your requirement.
6 The pulling mesh system is controlled by servo motor. Pulling the mesh back and forward recycled.
7. The wire mesh welding machine need factory power at least 80KVA to supply machine running.
8 The application of material; low carbon steel wire, galvanized wire, ribbed wire and so on.
Panel Welding Machine Features
1, CNC wheel-step design to provide high accurate mesh grid
2, Electrode lift system to extend electrode life
3, Line wire loop and balance system to ensure wire mesh accuracy.
4, Line wire vertical straightening system to provide high quality
5, Unique high speed air cylinder used on welding electrode to provide high reliability.
6, Welding pressure steplessly adjust to apply multiple wire diameter
7, High speed mesh cutting system,
8, Automatic mesh turning, stacking and conveying system
Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar
Application mesh panel : welded mesh panel widely used as reinforce mesh panel for building, construction ;railway wire mesh fence, security fence and others.
