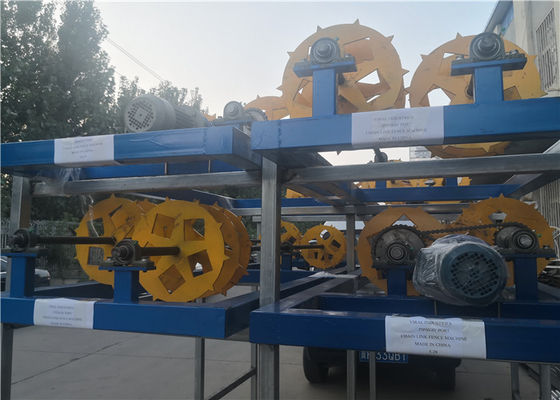

4.5kw 250M2/Hour Automatic Chain Link Fence Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	XR
Certification:	SGS
Model Number:	CLM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiated
Packaging Details:	Plastic Film
Delivery Time:	7-10 Days After Get The Payment
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	10 Sets Per Month

Contact Now

All Products

Chain Link Fence Fabric (109)

Chain Link Fence Fittings (102)

Chain Link Mesh Fence (104)

Stainless Steel Wire Rope Mesh (159)

Stainless Steel Filter Mesh Screen (79)

Farm Fence Wire Tensioner (51)

Razor Wire Concertina (86)

Decorative Metal Mesh (38)

Expanded Metal Mesh (13)

Welded Wire Gabions (11)

Chain Link Fence Band (16)

Chain Link Fence Rail End (9)

Chain Link Fence Post Caps (8)

Wire Mesh Machine (19)

Barbed Wire Extension Arm (24)

Stainless Steel Safety Gloves (27)

Perforated Metal Mesh (12)

Detailed Product Description

Type:	Fully Automatic	Hole Size:	2525mm To 150150mm(cuistomzied)
Motor:	Serve Motor	Power:	4.5KW
Surface:	Black Or Paint	Application:	Garden Fence/Mine Support Mesh
High Light:	25*25mm Chain Link Fence Machine , 4.5KW automatic chain link fence machine , 250M2/Hour automatic chain link fence machine

250M2/Hour High Efficiency Automatic Diamand Shape Chain Link Making Machine

Diamand Chain Link Machine Technique Parameter

Production Capacity	60-80(Square meter/hour)
Steel Wire Diameter	ø2.5-∅4.0 Spinning Wire Number: Twin-wire (Description: Steel wire standard according with:GB3081-82 YB544-65 Steel Wire Material:B1F-B3F)
Mesh	50x50-100x100(mm)
Breadth	600-2000(mm)
Power	3.0KW for One Machine 4.0KW for One Machine 0.12KW for One Machine
Overall Dimensions	LXWXH4200mm×4000mm×2500mm

Diamand Chain Link Machine Descriptiom

1. Through die, one rods of wire become diamond-shape.
2. And then diamond-shape wire connects with wire inside the winding shaft.
3. Mesh width and mesh opening can be customized as customers' will.
4. Application: extensively used as fences for playground and gardens, highway, railway, airport, port, etc.
5. This machine is well working in the hot weather condition, especially for Indian and Africa market.

If choose single wire chain link fence machine:

Low work efficiency
Buying many sets machines takes so much space in our factory

If choose double wire chain link fence machine:

High failure rates when working
Not easy to run the machine well if not familiar with the machine

Headache, headache, headache, how should we choose???

Now new machine come:
Why not choose double mold single wire chain link fence machine? It can be also called new design double wire chain link fence machine.

Chain Link Machine Benefits

Work procedure like single wire, but double wire work together to improve the efficiency.
It can suite different kind of wire strength, even one wire galvanized and the other wire Black wire also can suite this machine well.

Fully Automatic Chain Link Fence Machine
Woven wire diameter	1.5-4.5mm
Mesh size	2525-100100mm
Mesh width	3.0m
Production capacity	250m2/h
Main machine power	5.5kw
Weaving machine power	1.5KW
Border wire treating machine power	0.75kw*2
Voltage	380V/50HZ/Customized
Weight	1.8T

4.5kw 250M2/Hour Automatic Chain Link Fence Machine 0

Diamand Chain Link Machine Advantage

1. The machine is controlled by PLC automatic controller, so only one person is needed to
operate it.

2. One wire feeding which can reduce the breakdowns.

3. Wide width weaving scope: 1.8-4.5mm.

4. The high productivity for this machine can be 100m²/h.

5. The width scope can be 600-4000mm, and we can customize it for you.

6. The mesh size can be 25x25-120x120mm, and can be changed according to the mould.
