8FT X 50FT Chain Link Fabric Fence With Razor Barbed Wire For High Level Security

8FT X 50FT Chain Link Fabric Fence With Razor Barbed Wire For High Level Security

8FT X 50FT Chain Link Fabric Fence With Razor Barbed Wire For High Level Security
8FT X 50FT Chain Link Fabric Fence With Razor Barbed Wire For High Level Security
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: CE
Model Number: CLG138
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiated
Packaging Details: Package film for each piece And then Pallet
Delivery Time: 5-8 Days After Get The Paynebt
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 600 Unit Per Wddk
Contact Now
Detailed Product Description
Wire Diameter: 9 Gauge Color: Silver
For Use With: Chain Link Fence Accessories: Gate Latch
Gate Width: 3.5 Feet Gate Height: 4 Feet
High Light:

3.5ft chain link gate


4ft chain link gate

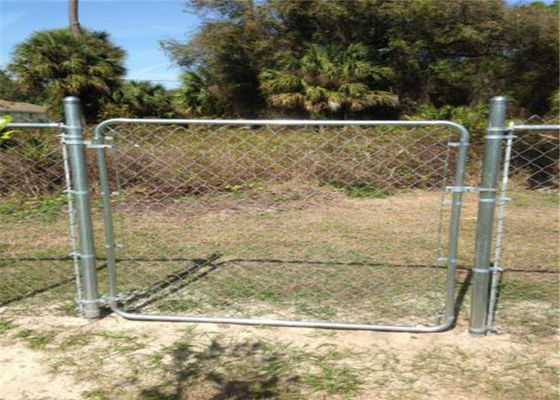

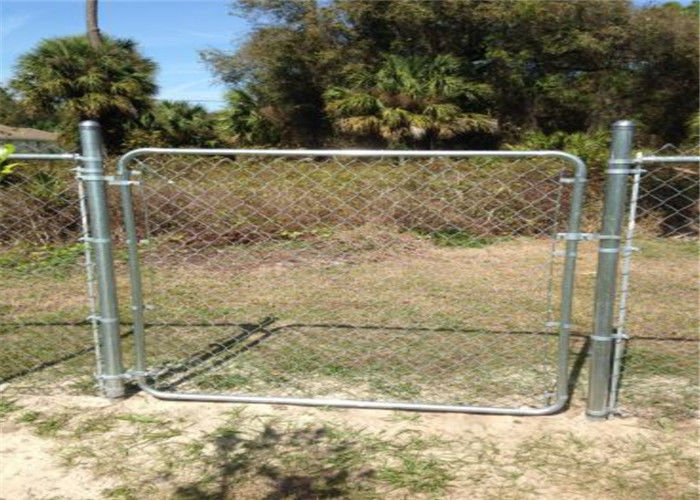

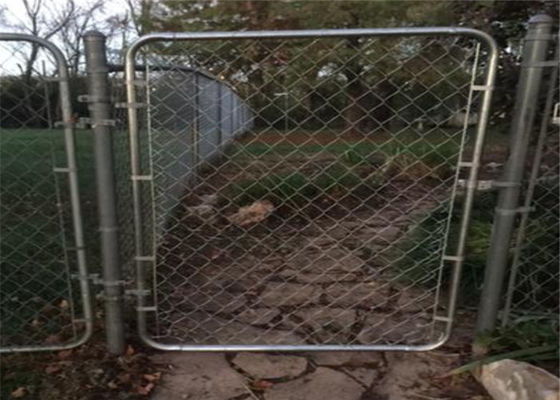

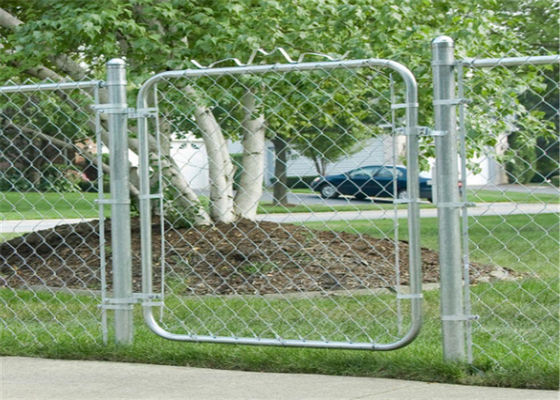

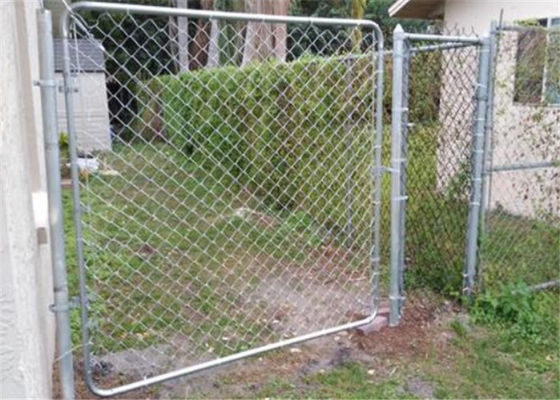

Residential Chain Link Fence Single Swing Gates - 1-3/8" Galvanized Frame

Chain Link Fence Single Swing Gate Description
Our Galvanized Frame Residential Chain Link Single Swing Gates feature a fully welded galvanized steel gate frame and fabric of your choice. The corners are notched and welded for added strength and rigidity. We then clean and paint the welded joints with a zinc-rich welders paint which protects from corrosion. The chain link fabric is attached to the gate uprights with tension bars and tension bands while aluminum tie wires attach the fabric at all horizontal rail connections. Our gates ship assembled, and do not include hardware.
Residential chain link fence single gates are available in heights of 3', 3-1/2', 4', 5', and 6', for opening sizes of 3', 3-1/2', 4', 5', and 6' wide. As for the chain link fabric itself, we offer galvanized options including 11-1/2 gauge, 11 gauge, and 9 gauge along with vinyl extruded 9 gauge chain link in Black, Brown, Green, and White.
Chain Link Fence Single Swing Gate Specification:
Actual Single gate widths are approx. 3-3/4" less than the width shown. This allows space for our standard strap hinges and fork latch (not included).
Example: a 4' (48") wide gate actually measures approximately 44-1/4" wide.
If you are using your hinges, set the posts after the gate arrives by pre-mounting the hinges and latch to guarantee a proper fit. This is always a good idea anyway. TIP: Set the gate hinge post first, install the gate complete with latch and set the latch post last. This GUARANTEES a good fit. We can custom build to fit your opening between posts, or other fixed structures, i.e. walls, and/or colum

Common Gate Height(Feet) 4 Manufacturer Color/Finish Galvanized
Common Gate Width (Feet) 3.5 Color/Finish Family Silver
Fence Mesh Size (Inches) 2.375 Warranty 5-Year Limited
Frame Tubing Diameter(Inches) 1.315 Primary Material Galvanized Steel
Fits Minimum Opening (Inches) 3.5 Type Walk-thru gate
Fits Maximum Opening (Inches) 42 Actual Thickness (Inches) 1.315
Weight (lbs.) 26 For Use With Chain Link Fence
Primary Recommended Use Decorative


Chain Link Fence Single Swing Gate Feature


Easy Install


Ordering Notes:


Our gates are built to fit the opening size shown, the space in-between the hinge posts or the hinge and latch post. Gates are also built approximately 2" shorter than the heights shown to allow space under the gate for it to swing. We can build to 'finish size' by request. Custom built sizes and configurations by special request.


Actual designs may vary from what is pictured depending on size of gate. Gates do not include a decorative scroll though we do have them available separately. We also offer matching double drive gates along with fully color-coated options.


8FT X 50FT Chain Link Fabric Fence With Razor Barbed Wire For High Level Security 0
