Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service
Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service
 |
| Place of Origin: | CHINA |
| Brand Name: | XR |
| Certification: | ISO |
| Model Number: | FS-020 |
| Minimum Order Quantity: | 2 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Water-Proof Plastic Film And Then Pallets |
| Delivery Time: | 7-10 days after get the payment |
| Payment Terms: | T/T, , Western Union, MoneyGram |
| Supply Ability: | 40000 EA Per Month |
| Weave Type: | Plain Dutch Weave, Plain Weave, Twill Dutch Weave, Twill Weave And Reverse Dutch Weave | Material: | Stainless Steel Mesh, Steel Mesh, Copper Mesh, Black Wire Mesh, Etc |
|---|---|---|---|
| Type: | Extruder Screen Pack | Shape: | Circular, Square, Oval-shaped, Rectangle, Other Special Shape Can Be Made As Per Request |
| Mesh Count: | 20 Mesh - 650 Mesh | Layer: | 1,2, 3, 4, 5 Layers, Or Other More Layers |
| Frame Style: | With And Without Frame And Spot Welding | Pack Diameter: | 20 Mm - 900 Mm |
| Highlight: | stainless steel filter screen,stainless steel mesh sieve |
||
50 Micron 100 Micron 150 Micron Stainless Steel Filter For Plastic Filament Extruder
Stainless Steel Filters For Plastic Filament Extruder Basis Information

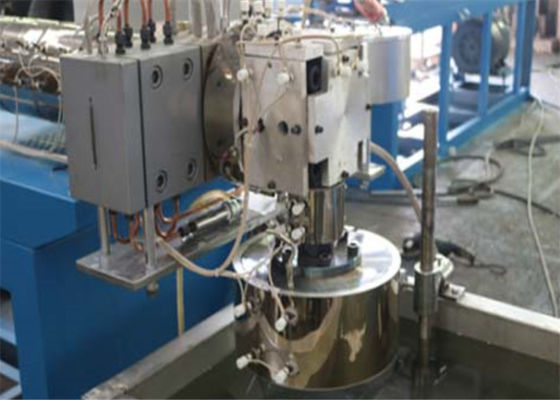

The stainless steel filter is used in PP/HDPE/Polyamide/PET Extruder machine. Manually to change,or automatic filter device change.We can offer a lot of size to filtering from big to smaller impurities,to make the melting flow more smoothly,and get good quality.
The filter used in the multifilament / monofilament extruder machine, one set including differnt size, filtering the impurities one by one layer, to make good quality multifilament and monofilament .
Stainless Steel Filter Size
| Mesh | Wire Dia (mm) | Aperture Size (mm) |
| 14*14 | 0.457 | 1.357 |
| 16*16 | 0.457 | 1.131 |
| 20*20 | 0.559 | 0.711 |
| 20*20 | 0.457 | 0.813 |
| 24*24 | 0.376 | 0.682 |
| 30*30 | 0.376 | 0.531 |
| 30*30 | 0.310 | 0.536 |
| 40*40 | 0.274 | 0.361 |
| 40*40 | 0.234 | 0.401 |
| 50*50 | 0.193 | 0.335 |

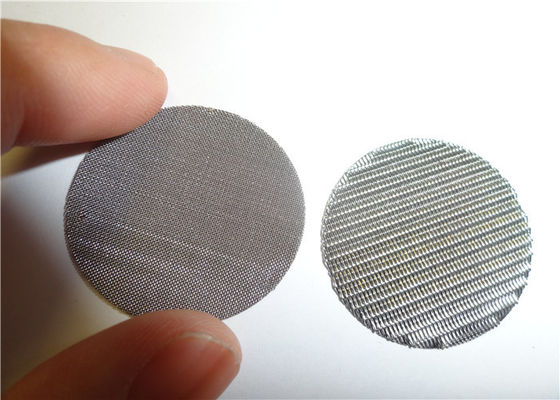

Single Layer Extruder Screen Filters
They are predominantly used in the plastic reclamation industry, often with a Dutch Weave filter used in conjunction with a plain weave support filter.
These are also used in the extruded profiles and blown film industries where the contamination of the raw material is less and there is often lower pressure within the extruder head.
Spot Welded Packs Filter Mesh Screen
These are excellent for use in any field where a specific graduated filtration is required.
Another advantage is that it stops single screen filters being placed into the extruder incorrectly. For example a pack consisting of three meshes could consist of a 10mesh / 20mesh / 10mesh; meaning that whichever way the wire mesh filter is placed into the extruder head, it will work correctly.

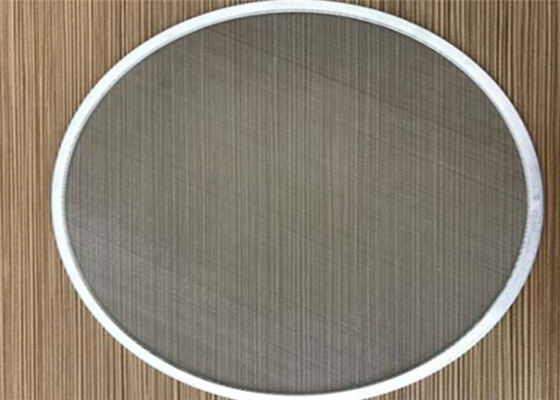

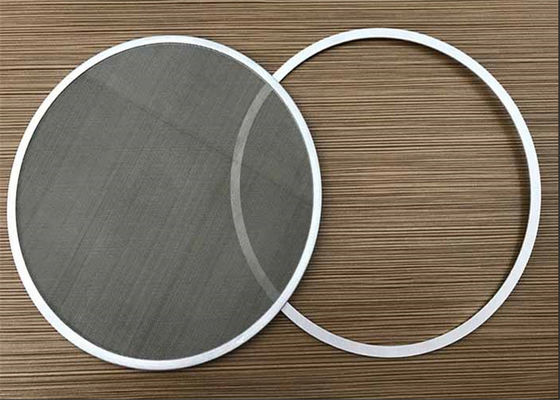

Rim Packs Extruder Screen Filter Mesh
These are spot-welded packs that have an Aluminum or Stainless steel rim added to them to give the wire mesh filter extra rigidity and strength.
These are excellent for use where the extruder screen filter is operating at high pressures or if there is a danger of contamination getting around the edge of the breaker plate.
Stainless Steel Extruder Screen Mesh Features
1. High filtering rate
2. Corrosion & alkali & acid resistance
3. Long use lifetime
FAQ:
Q1: What’s my consideration when I choose filter mesh?
A: 1) material
2) filtration rate
3) stable quality
Q2: What’s your delivery / lead time?
A: Normally the delivery / lead time is based on the order quantity.
Q3: How can you keep the good and stable quality?
A: We’ll do strict inspectation for the quality during each link of the production
.
Additional Information
| Mark | Mesh Filters |
| Demension | different diameter sizes,different rectangle sizes,different oval sizes,other shapes with drawing can be provided |
|
Packing details |
plasitic stretch film covering the filter screen carton box plywood case outside |
| MOQ | 1000 PCS per item |
| Layers | Multi-layers |
| Sample | Free and available |
| Techinque | Woven wire mesh |
