Mild Stainless Steel Expanded Metal Mesh , 1 Inch PVC Coated Expanded metal Wire Mesh
Product Information
Expanded metal is often referred to as diamond punched, stretched metal or security mesh. Due to its method of manufacture, expanded metal is one of the most economical steel mesh, or grating material, on the market.
Expanded Metal is produced from solid sheets or plates of carbon, galvanized and stainless steel, as well as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, and it is not woven or welded - it can never unravel.
Flattened expanded metal is expanded metal that has been cold flattened, leaving a smooth, flat surface with diamond shaped openings. Flattened expanded metal from Direct Metals is durable, economical, versatile, and is available in many material options, such as carbon steel, galvanized steel, aluminum, and stainless steel. During this process, the length of the sheet is elongated, usually by about five percent. After the expanded metal has been flattened, the expanded sheet is then sent through a leveler to maintain its flatness.
1) The thickness 2.8mm ,strand widht :2.3mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44 .the weight :12kg/sheet
2) The thickness 3.2mm ,strand witdh :2.3mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44m .the weight :14kg/sheet
3) The thickness 3.2mm ,strand widht :2.4mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.2x2.4m .the weight :14.5kg/sheet
4) The thickness 3.2mm ,strand witdh:2.4mm , small hole size :27x38mm ,the big hole size :27x36mm
The sheet size :1.22x2.44m .the weight :14.7kg/sheetSheet size: 1200 x 2400mm,
Weight: 12-14kg/sheet
Features of Flattened Expanded Metal
- Economical
- Durable
- Extremely versatile
- Easy installation
- Low resistance to wind loads
- Easily cut to fit
- Many material options, such as carbon steel, stainless expanded metal, and aluminum expanded metal
Since flattened expanded metal is both economical and durable, this type of metal is ideal for a variety of metal applications, such as expanded metal machine guarding. Some of these applications include:
- Expanded metal guards
- Expanded metal fencing
- Expanded metal panels
- Expanded metal grating
- Expanded metal grilles
- Expanded metal screens
- Expanded metal shelves
- Expanded metal ramps
- Expanded metal greenhouses
- Expanded metal walkways
- Expanded metal infill panels
Hot Sale Expanded metal Gothic Mesh
| Hot dipped Galvanized Expanded Gothic Metal Mesh |
| Product |
Thickness
(mm) |
Sheet size |
Hole size
(mm) |
Weight
(kg/pcs) |
| AISN gothic mesh |
2.75 |
4ftx8ft |
27x38,27x76
25x40,25x80 |
11.5 |
| AISN gothic mesh |
3 |
4ftx8ft |
27x38,27x76
25x40,25x80 |
12 |
| AISN gothic mesh |
3.5 |
4ftx8ft |
27x38,27x76
25x40,25x80 |
14 |
Features:
It is easily processing, has uniform stretched holes and has versatile applications.
Flat metal mesh sheet offers high rigidity in a variety of sizes and weights. The angles of the diamond strands allow maximum air circulation and distribute stress on the metal to supporting frames. The galvanized steel and black steel expanded diamond mesh is the most versatile expanded sheet materials. It can be made with different hole apertures and metal thicknesses to suit specific individual applications.
Uses: Standard Diamond Mesh fabricated from low carbon steel plates is ideal for use wherever a strong, durable, lightweight surface is needed, some of typical uses as following:
• Sunshade and Ventilation Screening effect - light and vision can be controlled
• Processed in forms of angle beads or corner beads. Working as A reinforcing agent - in concrete, plaster and wall buildings.
• Heat conduction and diffusion sheet - for grills and high temperature processing
• Security and safety - for fencing, cages and enclosures, machine guarding, shielding panels
• Architectural Cladding Panels - for protection and decoration of roof, wall, facade and interior and exterior partitions.
Expanded Gothic Metal Mesh Measurement

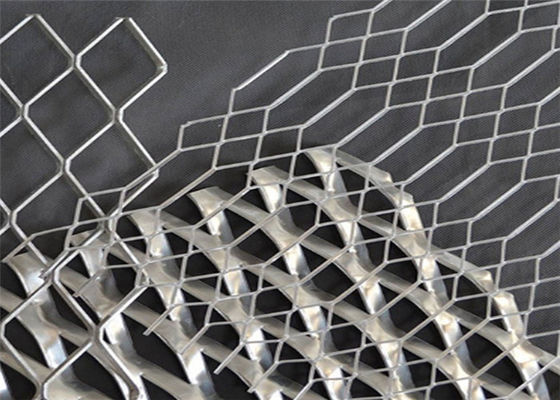

Expanded Gothic Metal Mesh Detailed Image
