Place of Origin: | CHINA |
Brand Name: | XR |
Certification: | ISO,CE |
Model Number: | PM-011 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiation |
Packaging Details: | Package film for each piece,Several pieces packed in 1 carton |
Delivery Time: | 7-10 days after get the payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 5000 PCS Per Month |
Usage: | Decoration,Ceiling Panels | Surface: | Smooth |
---|---|---|---|
Color: | Silver+OEM | Technique: | Perforated |
Sheet Size: | 1x1m, 1x2m, 1.2x2.4m, 1.22x2.44m,etc | Hole Shape: | Round ,square,diamond,hexagonal,star,flower,etc |
Perforated Way: | Straight Perforation,staggered Perforation | Material: | Aluminum Sheet,Steel Sheet,Galvanized Sheet |
High Light: | perforated mesh screen,perforated metal mesh screen |
Decorative Perforated Metal Mesh Plate Hot Galvanized For Ceiling Panels
Perforated Metal Mesh Features
Acoustic performance
The perforated metal sheet with high open area allows sounds to pass through easily as well as protects the speaker from any damage. So it is widely used as speaker grilles. Additionally, it is ability to control noises for providing you an comfortable environment.
Sunlight and radiation containment

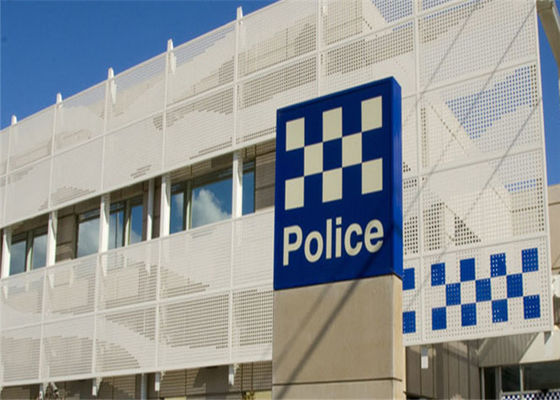

Nowadays, more architects adopt perforated steel sheet as sunscreen, sunshade to decrease the solar irradiation without any block of view.
Heat dissipation
Perforated sheet metal features the character of heat dissipation, which means the load of air conditions can be reduced in a large extent. The related cruising data demonstrated that the using perforated sheet in front of building facade can bring about 29% to 45 energy savings. So it applies to architecture usage, such as cladding, building facades, etc.
Perfect filtration performance
With perfect filtration performance, stainless steel perforated sheet and aluminum perforated sheets are normally used as sieves for bee hives, grain dryers, wine presses, fish farming, hammer mill screen and window machine screens, etc.
Anti-skid
Embossed perforated aluminum sheets make it possible to be used as anti-skid plated in offices, industrial plants, tread, stairs, transport places, etc. It works to protect personal safety by reducing the occurrence of slipping caused of wet and slippery road.
Protective function
The perforated sheet have proven to be durable enough for protecting machines and other properties. Meanwhile, it also can be used as balcony guardrails to protect small children from falling.
Perforated Metal Mesh Applications
Cladding and ceiling panels
Sunshade and sunscreen
Filter to sieve seed, stone and other bulk materials
Decorative banister
Protective fences of overpasses and machine equipment.
Balcony and balustrade panels
Ventilation sheet, such as air condition grilles
Product Information
Main Parameter Information | |
Name | Decorative Perforated Metal Mesh Plate Hot Galvanized For Ceiling Panels |
Material | Aluminum Sheet,Steel Sheet,Galvanized Sheet |
Surface Finish |
(1)For aluminum material Mill finish Anodized finish(silver only) Powder coated (any color) PVDF (any color,smoother surface and longer life span) |
(2)For iron steel material Galvanized : Electric galvanized,Hot-dip galvanized Powder coated |
|
Sheet size(m) | 1x1m, 1x2m, 1.2x2.4m, 1.22x2.44m,etc |
Thickness(mm) | 2.0mm~10mm,standard:2.mm,2.5mm,3.0mm. |
Hole shape | round ,square,diamond,hexagonal,star,flower,etc |
Perforation way | Straight perforation,staggered perforation |
ROUND HOLES STAGGERED PATTERN | |||
HOLE | CENTERS | GAUGE / PLATE THICK. |
OPEN AREA |
.020" RD | .045" Stag | 26 | 18% |
1/32" RD | 1/16" Stag | 22 | 23% |
3/64" RD | 5/64" Stag | 24 | 33% |
3/64" RD | 3/32" Stag | 22 thru 18 | 23% |
1/16" RD | 3/32 Stag | 22 thru 16 | 40% |
1/16" RD | 7/64" Stag | 20 thru 16 | 30% |
1/16" RD | 1/8" Stag | 26 thru 16 | 23% |
5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
3/32" RD | 3/16" Stag | 24 | 23% |
.117 RD | 5/32" Stag | 18 | 51% |
1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
1/8" RD | 7/32" Stag | 14 thru 12 | 30% |
1/8" RD | 1/4" Stag | 14, 13 | 23% |
9/64" RD | 3/16" Stag | 18 | 51% |
5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
5/32" RD | 1/4" Stag | 20 thru 10 | 35% |
3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
3/16" RD | 1/4" Stag | 24 thru 12 | 51% |
3/16" RD | 5/16" Stag | 10, 3/16" | 33% |
3/16" RD | 3/8" Stag | 14 thru 10 | 23% |
1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% |
17/64" RD | 5/16" Stag | 20 | 66% |
5/16" | 7/16" Stag | 20 thru 1/4” | 46% |
3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
1/2" RD | 3/4" Stag | 16 | 40% |
5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
1-1/4" RD | 1-5/8" Stag | 1/4" | 54% |
1-1/2" RD | 2" Stag | 1/4" | 51% |
2" RD | 2-1/2" Stag | 1/4" | 58% |
2-1/2" RD | 3" Stag | 3/16" | 63% |
3" RD | 3-1/2" Stag | 3/16" | 67% |
4" RD | 4-1/2" Stag | 10 | 72% |
Our Services
Q1. How to make a inquiry ?
A1. You need to provide material, mesh number, wire diameter, size and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll provide a formal quotation list after your inquiry received.
Q2. Could you provide free sample ?
A2. Yes, we can provide free sample in half A4 size together with our catalogue. But the courier chargewill on your side. We'll send back the courier charge if you make an order.
Q3. How is your Payment Term ?
A3. Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L.Other payment term we can also discuss.
Q4. How is your delivery time ?
A4. We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
