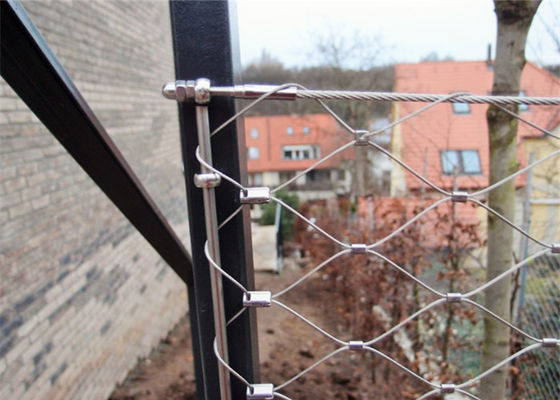

Staircase Balustrade Cable Mesh Diamond Shape Customized Panel Size
1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304, 304L, 316, 306L etc.
| SS304 |
(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 |
(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L |
(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
2. Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
Recommended Balustrade Infill Cable Wire Mesh:
| Material |
Cable Diameter |
Hole Size |
Normal Break |
| SS304/316/316L |
1/16" (1.6MM) |
2.5" x 2.5" |
480 LBS |
| SS304/316/316L |
1/16" (1.6MM) |
2" x 2" |
480 LBS |
| SS304/316/316L |
5/64" (2.0MM) |
2.5" x 2.5" |
676 LBS |
| SS304/316/316L |
5/64" (2.0MM) |
2" x 2" |
676 LBS |
| SS304/316/316L |
5/64" (2.0MM) |
3" x 3" |
676 LBS |
Balustrade Infill Cable Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ; X-tend type cable mesh is custom manufactured to suit your balustrade, railing or architecture application; Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design ; Diagonal and irregular shapes can also be supplied.
Wire Rope Mesh Fencing Characteristics :
1. Advantage of Wire Rope Net
Unique design. 3D-structure, Flexible, Light weight, . Corrosion resistant, Maintenaance free. 10 years rust guaranteed.
2. 304 or 316 stainless steel?
- Generally the 304 stainless steel is cheaper than 316 stainless steel, to flexible wire rope mesh, the main cost is process cost, so the cost of mesh between 304 and 316 almost same. we suggest to choose 316 stainless steel.
3. What is the different with cable and opening ?
- The heavier cable or smaller opening, the cost more expensive.
4. Is it safety ?
- Full mesh meet test under EN1263.1.2014
5. How to install the mesh !
- Full of our piece is manufactured with special edge design. install by yourself easily.
Wire Rope Mesh Fencing Features
Unique design idea, X tend mesh style
Flexible, elegant, discreet, filigreed, multifunctional.
Corrosion resistant,allows strong airflow.
Fully pro-enviroment, recyclable, no toxic and flammable.
Easy installation
Once steel cable mesh is using, maintenance free, don't ask any special cleaning or coating.
Long use life
| OEM |
Yes |
| Special Sizes or Shape |
Yes |
| Customized packing |
Yes |
| Sample |
Can be offered or Made |
| Delivery time |
Usually within 7-15 working days |
| Payment terms |
T/T, Western Union, PayPal., Escrow, L/C |
| Optional Way of Transportation |
Sea Transportation, Air Transportation
International Express: DHL,TNT,DEDEX,UPS,EMS
|
Wire Rope Mesh Factory Workshop Image Shown
