Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering

Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering

  • Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering
  • Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering
  • Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering
  • Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering
Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering
Product Details:
Place of Origin: CHINA
Brand Name: XR
Model Number: CLF-012
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Negotiation
Packaging Details: Plastic Film And Then Pallets
Delivery Time: 5-8 Days After Get The Payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 6000 Rolls Per Week
Contact Now
Detailed Product Description
Mesh Opening: 50x50mm Color: Silver Or Green
Material: Steel Length: 1.0m-50m
Width: 0.5m-50m Wire Diameter: 2.5mm,3mm,3.5mm Popular
High Light:

chain link fence fabric screen

,

chain link fabric fencing

Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering





1.Chain link fence fabric basic information



Chain link fence fabric also named diamond wire mesh, rhombic wire mesh, cyclone fence, is one of the most popular choices of fence for both light residential and heavy commercial fence applications.



2.Chain Link Fence Mateiral



Mainly galvanized iron wire, stainless steel wire, PVC wire and aluminium alloy wire.



3.Chain link fence specifications



Mesh Opening 1''- 4''(25mm-100mm), popular: 50x50mm
Wire Diameter 18#-7#(1.2mm - 4.5mm), popular: 2.5mm, 3mm, 3.5mm
Roll Width 0.5m - 5m, popular: 1.5m, 1.8m, 2m, 2.5m, 3.6m
Roll Length 1m - 50m, popular: 10m, 15m, 25m
  Specifications can be made according to your requirements



4.Chain Link Fence Surface Treatment



 PVC coated, electro (zinc coating 15-20g/m2), or hot dipped galvanized (zinc coating 35-300g/m2).


5.Chain Link Fence Fabric Characteristics



The mesh is even in size and smooth in surface; The weaving is simple, artistic and practical; The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.



Opening 1" 1.5" 2" 2.25" 2.4" 2.5" 3" 4"
25mm 40mm 50mm 55mm 60mm 65mm 76mm 100mm
Wire diameter 18#-7#
1.20mm-5.00mm
Length of the roll 1.0m-50m
Width of the roll 0.5m-5.0m

Materials and specifications can be made according to customers specific requirements.



Fabric with 2-in. [50.8mm] or 2-1/8-in. [54.0-mm] mesh, in heights less than 72 in [1829 mm], shall be knuckled at both selvages. Fabric 72 in. [1829 mm] high and over shall be knuckled at one selvage and twisted at the other. These are standard selvages. Other selvage combinations will be supplied only if specified by the purchaser.Usually selvages for fabrics less than 2-in. [50.8mm] shall be knuckled at both edges.

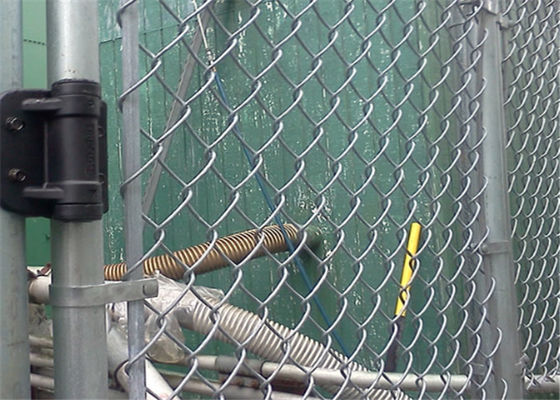

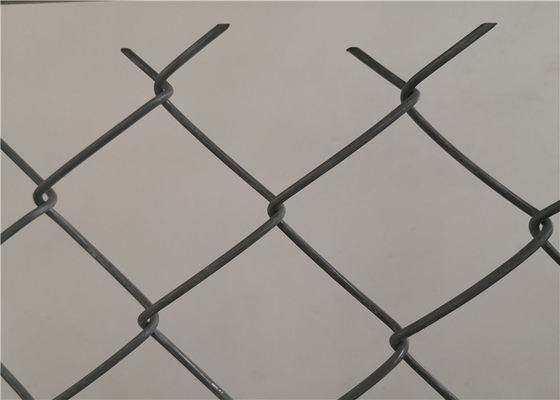

A chain-link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized or LLDPE-coated steel wire. Thewires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence



Silver Chain Link Fence Fabric 50x50mm Weave Hot Galvanized Steel Wire For Engineering 0
