Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service
Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service

|
| Place of Origin: | CHINA |
| Brand Name: | XR |
| Certification: | ISO |
| Model Number: | CLF-011 |
| Minimum Order Quantity: | One Roll |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Plastic film and weave bags or wood pallets as required |
| Delivery Time: | 7-10 Days After Get The Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Rolls Per Week |
| Size: | 8ftx50ft | Material: | Steel |
|---|---|---|---|
| Surface Treatment: | Galvanized Or Pvc | Color: | Silver,Green Or Black |
| Fence Element: | Mesh, Framework, Fitting And Gate | Fence Frame: | Top Rail, Horizontal Post, Corner Post Etc |
| High Light: | chain link fencing fabric mesh,chain link fabric fencing |
||
8 FT X 50 FT Chain Link Fabric Fence With Razor Barbed Wire For High Level Security
Product Description
What is chain link fabric fence? Below is product description
Chain Link Fabric Fence is also called security grade chain link fencing system.Combined with barbed wire and razor wire,it is designed to increase the difficulty to climb and penetrate, which provides greater levels of security for protecting personal safety and property.The fence can be used as galvanized chain link fabric, PVC coated iron chain wire fence and stainless steel chain link fence. Heavy type chain-link fences with barbed wire or razor wire fence together can supply high strength used for prison security.
Table 1 – Zinc Coated Wire Characteristics
| Nomal Coated Wire Dia. | Allowable Variance | Zinc Coated Weight(Mini) | Breaking Strength(Mini) | |||||||
| Class1 | Class2 | |||||||||
| Gauge | Inch | mm | Inch | mm | Oz/ft² | g/m² | Oz/ft² | g/m² | Ibf | Newtons |
| 8 | 0.192 | 4.88 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 2,170 | 9,650 |
| 9 | 0.148 | 3.76 | ±0.005 | ±0.13 | 1.2 | 366 | 2.0 | 6.10 | 1,290 | 5,740 |
| 11 | 0.12 | 3.05 | ±0.005 | ±0.13 | 1.2 | 366 | --- | --- | 850 | 3,780 |
Table 2 – Zinc Coated Chain Link Fabric Fence Selection
| Recommended use | Mesh size (inch) | Normal coated wire size gauge | Height of fence fabric |
| Industrial/commercial | 2’’ | 6 | 36’’-144’’ |
| 9 | 36’’-144’’ | ||
| 11 | 36’’-144’’ | ||
| Industrial/Security | 1’’ | 6 | 36’’-144’’ |
| 9 | 36’’-144’’ | ||
| Security | 1’’ | 9 | 36’’-144’’ |
| 1’’ | 11 | 36’’-144’’ | |
| 3/4’’ | 9 | 36’’-144’’ | |
| 3/4’’ | 11 | 36’’-144’’ | |
| 5/8’’ | 9 | 36’’-144’’ | |
| 5/8’’ | 11 | 36’’-144’’ | |
| 1/2’’ | 9 | 36’’-144’’ | |
| 1/2’’ | 11 | 36’’-144’’ | |
| 3/8’’ | 11 | 36’’-144’’ | |
| Tennis Court | 1 3/4’’ | 9 | 36’’-144’’ |
| 11 | 36’’-144’’ |
Table 3 – Chain Link Fence Post Selection
| Line Post Description(OD) | Terminal Post Description (OD) |
| 2.375inch diameter pipe | 2.875in.diameter pipe |
| 2.25by 1.70in.C-Section | 2.875in.diameter pipe |
| 2.875in.diameter pipe | 4.0in.diameter pipe |
| 3.25 by 2.50 in. C-Section | 4.0in.diameter pipe |
| 4.0in.diameter pipe | 6.625in.diameter pipe |
| 4.5in.diameter pipe | 6.625in.diameter pipe |
| 6.625in.diameter pipe | 6.625in.diameter pipe |
| 8.625in.diameter pipe | 8.625in.diameter pipe |
Chain link fabric fence Application

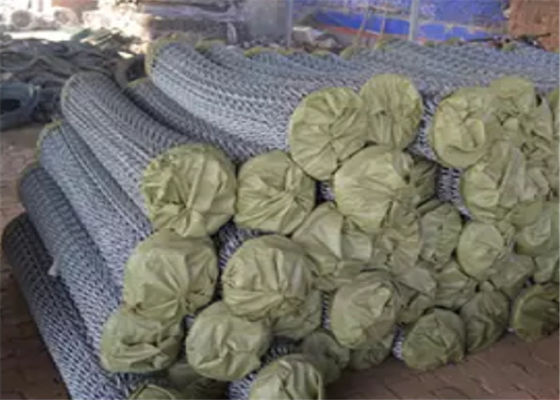

Chain Link Fence Fabric Packing and Delivery
