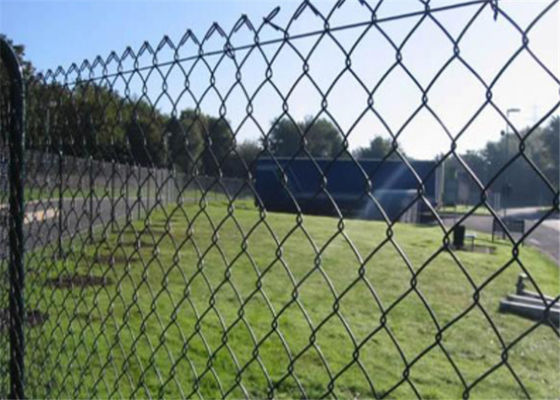

Vinyl Coated Steel Chain Link Mesh Fence Fabric 50FTx4FT For Security

50FTx4FT Vinyl Coated Steel Chain-link Fence Fabric For Security

Chain Link Fence Product information

• The smooth characteristics of the professionally-coated black wire create a unique fence fabric which blends beautifully with the environment
• The color-coated wire is woven into a 2-in mesh
• Knuckle/knuckle selvage (bent over) on the top and bottom of the fabric to help eliminate sharp edges
• Made with 9-gauge color-coated wire to provide enhanced beauty and strength
• Easy to install and maintenance-free

When building a privacy fence for your home or business, the Galvanized Steel Chain Link Fabric offers the perfect solution. Stretching 50 ft. L, this chain link fencing is made of 11.5-Gauge steel that has been galvanized before weaving to eliminate sharp surfaces and burrs that could cut or scrape. with a 2-3/8 in. mesh opening size, you can easily see through the fence while deterring intruders and small animals from entering the property.

• To calculate how much materials you would need for your fencing project,
• Made of galvanized steel for tough durability
• Galvanization creates a silver finish for an attractive appearance
• Top and bottom of fabric ends are knuckled (bent over) to eliminate sharp edges
• 2-3/8 in. woven diamond mesh opening provides both visibility and security
• Roll-out design enables easy installation
• For residential and commercial use
• Meets or exceeds standards

Chain Link Mesh Fence Instruction and Assembly

If you Make a Plan to buy

1.Make a drawing of your fence in the space

Use chart below to determine exact number of terminal and line posts you will need based on your final layout measurements.

2.Measure the size

3.Install Fittings to Terminal Posts

Review the Material Check List on reverse side for descriptions and number of fittings required. After concrete footings have hardened, slip the tension bands over terminal posts making sure they are evenly spaced. The long, flat surface should face the outside of the fence. Carefully add brace bands making sure not to bend or distort. Bolt heads should be on the outside of the fence and threaded ends inside. Fit all post caps.

4.Install the top rails

Place an eye top fitting on the end of each line post. Flat side should be toward outside of the fence. Insert one length of top rail pipe through an eye top nearest a terminal post. Insert a rail end on the top rail and attach to terminal post with a brace band. Fasten with a 5/16” x 1-1/4” carriage bolt. Continue to join lengths of top rail by forcing swedged (or crimped) ends of top rail together through eye tops. (If joining non-swedged top rail sections, sleeves can be used as pictured below). When next terminal post is reached, measure and cut the top rail to fit tightly between the last length of top rail and the rail end fastened to the brace band on the terminal post. Fasten with a carriage bolt.

     5.Affix and Stretch Chain Link Fabric

     6.Hang Gates

Chain Link Mesh Fence Specifications:
