2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar

2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar

  • 2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar
  • 2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar
2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar
Product Details:
Place of Origin: China
Brand Name: XIRUN
Model Number: TB-2-1/2"
Payment & Shipping Terms:
Minimum Order Quantity: 2EA
Price: to be negotiated
Packaging Details: carton box and then pallets
Delivery Time: 7-10 days after get the payment
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 80000per month
Contact Now
Detailed Product Description
Material: Steel Surface Treatment: Galvanized
Selling Unit: Single Item Size: 38mm 42mm Or 60mm Or 89mm Or 120mm
Feature: Easily Assembled, Sustainable Used: Chain Link Fence Post
Keyword: Tension Band Single Weight: 0.3kg
High Light:

chain link fence parts

,

chain link fence accessory

2-1/2" Galvanized Steel Tension Band To Tension Bar



Do you know How to use galvanized steel tension band?

Galvanized steel chain link fence tension band is used to secure and tighten chain link fabric to terminal posts or gate frames in conjunction with the tension bar (sold separately). In general, you will need one less tension band than the height of the fence. For use with 2-3/8in terminal posts. Carriage bolts required for installation .



2-1/2” Tension Band connects to a tension bar to tighten the chain link fabric of your fence.

  • Material is Galvanized;
  • Advantage is rust resistant
  • Nuts and bolts not included
  • Application for 2-1/2” diameter posts
  • Can be used for gate frames



How many do you need tension bands?

You will need 2-1/2” tension bands for every stretch of fence.

The amount of tension bands you will need per terminal post is 1 less than the height of the fence.

  • Tension Bands are Used for Attaching the Chain Link Mesh to a Corner, End, Gate Post or Gate Frame
  • Tension Bands Wrap Around the Pipe on the Fence and Attach to a Tension Bar Holding the Fencing
  • Tension Band is Galvanized Steel to Prevent Red Rust.
  • Tension Band Used for Many Kennels, Gates and Fence Panels
  • This could sell by bound.(12piece)

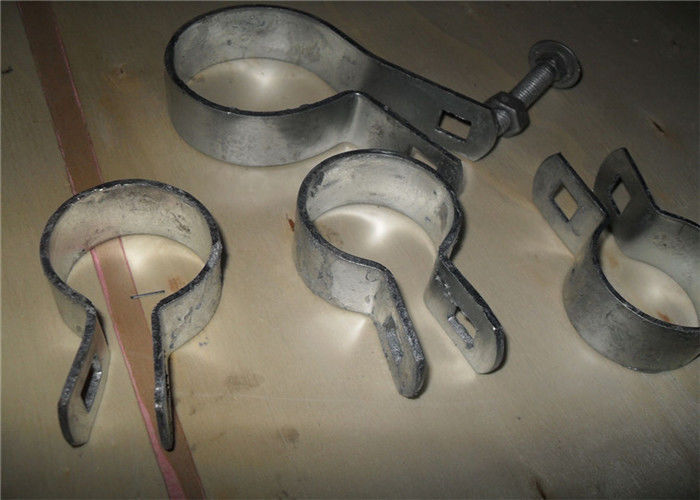

2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar 0

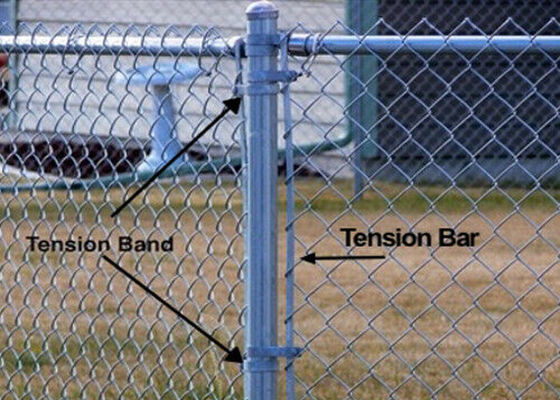

Here below is the showing for tension band on the fence post:



2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar 1





galvanized steel tension band detailed specification:



Tension Bands - Galv. Heavy - 1" wide x 1/8" 2 3/8" 0.41
  2 7/8" 0.42
Tension Bars - Galvanized - Flat - 3/4" wide x 3/16" 6' 2.74
  8' 3.68



Packing type:

Single package type:20x20x10cm

Carton box and then pallets.



2-1/2" Chain Link Fence Fittings Galvanized Steel Tension Band To Tension Bar 2
