42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band

42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band

  • 42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band
  • 42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band
  • 42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band
  • 42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band
42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: ISO9001
Model Number: TB-004
Payment & Shipping Terms:
Minimum Order Quantity: 1 EA
Price: Negotiation
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 10-15 days after get your payment
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 5000EA per month
Contact Now
Detailed Product Description
Type: Fencing, Trellis & Gates Feature: Easily Assembled, Sustainable, Waterproof
Size: 38mm 42mm Or 60mm Or 89mm Or 120mm Color: Silver+OEM
Material: Steel Used: For Fence Post
Surface Treatment: Galvanized Connection: Flange
High Light:

Galvanized Chain Link Fence Tension Band

,

42mm Chain Link Fence Tension Band

,

3-1/2 Inch chain link tension band

3-1/2 Inch Galvanized Chain Link Fence Offset Tension Band Black Powder Coated



Chain Link Fence Offset Tension Band Application



  • Use This With 3-1/2" Fence Posts
  • Constructed Of Durable Galvanized Steel To Help Prevent Rusting & Corrosion And Improve Longevity
  • Use This To Secure And Tighten Chain Link Fabric To Terminal Posts Or Gate Frames

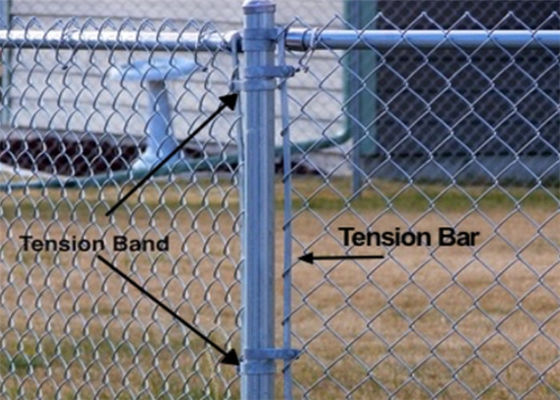

  • A Tension Band Is Used In Conjunction With A Tension Bar
  • Use 5 Bands For 6ft H posts, 6 Bands For 7ft Posts, and 7 Bands For 8ft Posts

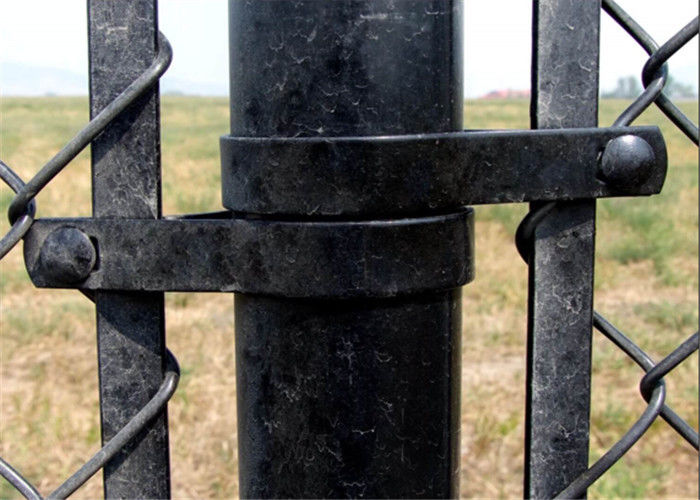

Chain link fence tension bands are often used to attach fence horizontal rails, bottom tension wire, and occasionally barbwire to chain link fence terminal posts.

How do I attach the tension band to my chain link fence?

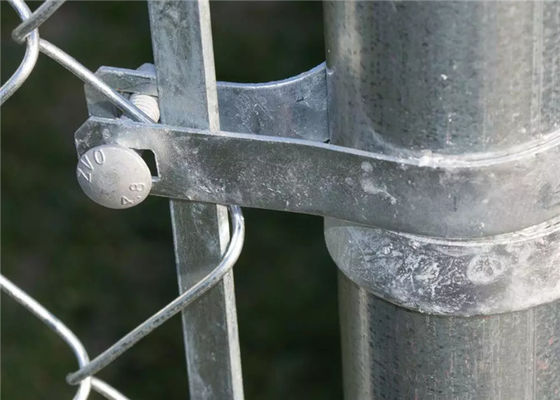

Tension bands can be slid over the top of a post and mounted in place by inserting a carriage bolt and tightening it with a hex nut and ratchet.

How do I attach a tension band to my chain link fence that already has other items mounted to it?



Tension bands can be bent open with a pair of pliers or by hand (depending on the person). Simply open grab each end of the tension band and apply pressure in a pulling motion. Once open, wrap the band around the post at the desired location. Next, squeeze the two ends back together, by hand or with pliers. Insert a carriage bolt and tighten.



Chain Link Fence Offset Tension Band Description

Chain link fence tension bands are often used to attach fence horizontal rails, bottom tension wire, and occasionally barbwire to chain link fence terminal posts. This almost always includes the top rail, but may also include a bottom rail, midrail, tension, and truss rods. Use with rail end of appropriate size.



Chain Link Fence Offset Tension Band Features


Galvanized to prevent rust
Use one tension band per top rail end
Fits a 3-1/2″ post
Easy to assemble, High quality
Screw accessories NOT included
Indispensible components to any chain link fences



If your fence is 4'' high order 3 per post that you will use tension bands on.
(rule of thumb is one less than the height of your fence in feet.
For use with fence posts
Constructed of durable galvanized steel to help prevent rusting and corrosion and improve longevity
Could be used on fence post for 1 3/8''-6 5/8''.

Service 1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. If you have a large number of orders, we will send you 1 ~ 2 parts to prevent damage in transit;
6. We will try our best to meet your requirements and supply you best quality of the products.





FAQ:



How do I attach the tension band to my chain link fence?



Tension bands can be slid over the top of a post and mounted in place by inserting a carriage bolt and tightening it with a hex nut and ratchet.



How do I attach a tension band to my chain link fence that already has other items mounted to it?



Tension bands can be bent open with a pair of pliers or by hand (depending on the person). Simply open grab each end of the tension band and apply pressure in a pulling motion. Once open, wrap the band around the post at the desired location. Next, squeeze the two ends back together, by hand or with pliers. Insert a carriage bolt and tighten.



What side do I mount the tension band?



The long side of the tension band goes on the outside of the chain link fence. The outside is the side for which you want the most security, e.g. carriage bolts will be inserted from the outside, with the bolts being accessible only on the inside of the fence.



42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band 0

Tension Bands Packing



42mm 3-1/2 Inch Galvanized Chain Link Fence Tension Band 1
