Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M

Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M

Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M
video
Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: ISO
Model Number: CLF-023
Payment & Shipping Terms:
Minimum Order Quantity: One Roll
Price: Negotiation
Packaging Details: Water-Proof Plastic And Then Pallets
Delivery Time: 5-8 Days After Get The Payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 7000 Rolls Per Week
Contact Now
Detailed Product Description
Color: Silver+OEM Usage: Residential, Commercial, Security Fence
Material: Steel Wire Diameter: 2.5Mm
Roll Size: 900MMx25M Opening: 50 X 50 Mm
Surface: Pvc Coating Or Galvanized Application: Garden,Sport Field
High Light:

chain link fence fabric screen

,

chain link fabric fencing

Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M





Chain Link Fence Fabric is the fastest and most cost effective fence products on the market today.

Chain Link Fence Rolls Basis Information

  • Wire Dia:0.5mm-5.0mm
  • Mesh size: 1 inch, 1.5 inch, 2 inch, 2.25 inch, 2.4 inch, 2.5 inch , 3 inch, 4 inch
  • Width:0.9m - 2.5m
  • Length:10m, 20m, 25m, 30m or 50m
  • Color: green, white, black etc



Chain Link Fence Rolls  Standards



Type 1 – Zinc-Coated Steel Chain Link Fence Fabric Characteristics



Nomi al Coated Wire Diameter Allowable Variance Zinc Coating Weight, min. Breaking Strength, minimum
Class 1 Class 2
Gage Inch mm Inch mm Oz/ft² g/m² Oz/ft² g/m² lbf Newtons
6 0.192 4.88 ±0.005 ±0.13 1.2 366 2.00 6.10 2,170 9,650
9 0.148 3.76 ±0.005 ±0.13 1.2 366 2.00 6.10 1,290 5,740
11 0.120 3.05 ±0.005 ±0.13 1.2 366 --- --- 850 3,780



Table 2



Recommended Use



Mesh Sizes Available



Nominal Coated Wire Size, gage



Height of Fence Fabric inch

Inch



Industrial/Commercial

2”

6 36” – 144”
9 36” – 144”
11 36” – 144”



Industrial/Security

1”

6 36” – 144”
9 36” – 144”






Security

1” 9 36” – 144”
1” 11 36” – 144”
3/4" 9 36” – 144”
3/4" 11 36” – 144”
5/8” 9 36” – 144”
5/8” 11 36” – 144”
1/2" 9 36” – 144”
1/2" 11 36” – 144”
3/8” 11 36” – 144”



Tennis Court



1 3/4"

9 36” – 144”
11 36” – 144”



Chain Link Fence Rolls  Notes to tables

(1) Breaking strength (table 1) based on a minimum tensile strength of 75,000 psi.

(2) Fabric with mesh size less than 1" is galvanized before weaving.

(3) Chain-link fabric shall be furnished in the standard heights shown in Table 2. Custom order fabric is available in heights to and including 20ʼ.

As a professional chain link fence manufacturer, we can supply you high quality products. Welcome to contact!



Chain Link Fence Rolls Package

  • Fence Panel: Plastic film for every piece in bulk or Wooden/Metal Pallet
  • Fence Post:Plastic film + Wooden/Metal Pallet
  • Accessories: In woven bags or Cardboard boxes

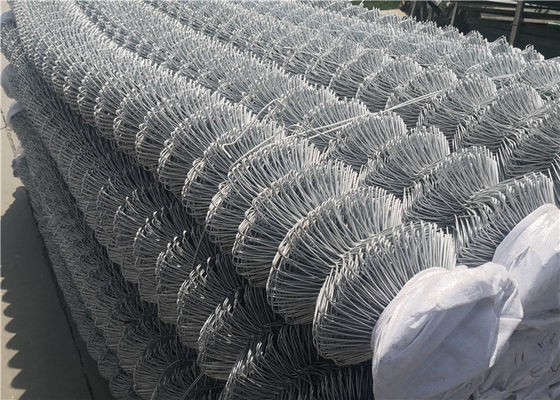

  • Chain link fence fabric 900MMx25M Roll Image



Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M 0

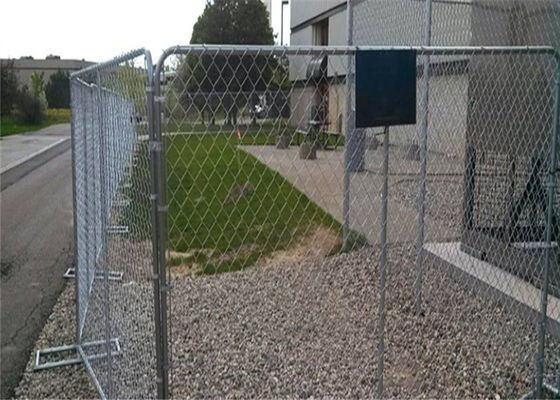

Chain link fence fabric Installation Image



Galvanised Chain Link Fence Privacy Screen Fabric Rolls 900MM X 50MM X 2.5MMx25M 1
