Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service
Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service
 |
| Place of Origin: | CHINA |
| Brand Name: | XR |
| Model Number: | CLF-015 |
| Minimum Order Quantity: | one roll |
|---|---|
| Packaging Details: | Wrap up the two edges of the crimped rolls with the plastic weaving bags |
| Delivery Time: | 7-10 days after get the payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 7000 rolls per week |
| Color: | Green | Shape: | Diamond |
|---|---|---|---|
| Opening Size: | 2'' | Height: | 8Feet |
| Material: | Steel Wire | Application: | Construction And Residence |
| High Light: | chain link fence netting,chain link wire mesh fencing |
||

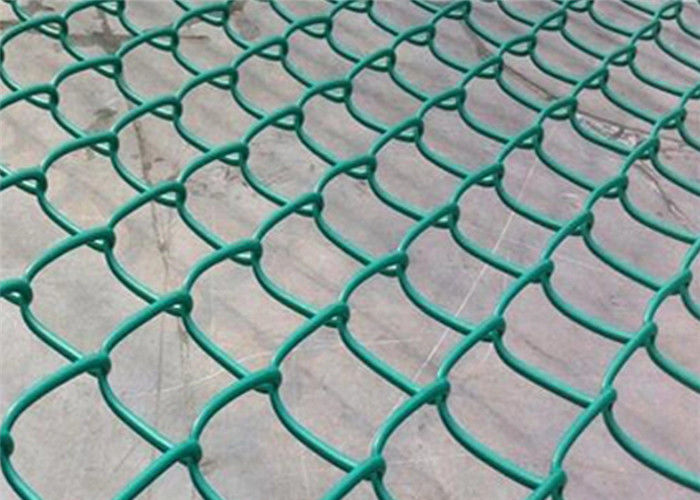

2 Inches Green Color Pvc Coated 5x5cm 8Feet Galvanized Chain Link Mesh Fence
Chain link fence, also referred to as chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence , is one of the most popular choices of fence for both light residential to heavy commercial fence applications. It is woven by a way that the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern fence.
Chain link fence is most commonly available galvanized which is silver in color. Chain link fence fabric is typically produced in 50' rolls’ length(15.24m), and the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size, and it is ideal for industrial and commercial fence applications.
|
Nominal coated wire diameter |
Available variance | Zinc coating weight, min. | Breaking strength minimum |
|||||||
| Class 1 | Class 2 | |||||||||
| ga | inch | mm | inch | mm | oz/ft2 | g/m2 | oz/ft2 | g/m2 | lbf | Newtons |
| 6 | 0.192 | 4.88 | +/- 0.005 | +/-0.13 | 1.20 | 366 | 2.00 | 610 | 2,170 | 9,650 |
| 9 | 0.148 | 3.76 | +/- 0.005 | +/-0.13 | 1.20 | 366 | 2.00 | 610 | 1,290 | 5,740 |
| 11 | 0.120 | 3.05 | +/- 0.005 | +/-0.13 | 1.20 | 366 | x | x | 380 | 1,690 |
A typical specification list of 9 gauge chain link fence fabric
| Chain Link Fence Fabric - 9 Gauge Residential and Commercial Galvanized | |||
| Fabric Galvanized 9 gauge  |
Code | Size (Mesh x Gauge x Height) |
Ends |
| CL-9X36-G | 2 x 9 x 36 | KxK | |
| CL-9X42-G | 2 x 9 x 42 | KxK | |
| CL-9X48-G | 2 x 9 x 48 | KxK | |
| CL-9X60-G | 2 x 9 x 60 | KxK | |
| CL-9X72-G | 2 x 9 x 72 | KxB | |
| CL-9X84-G | 2 x 9 x 84 | KxB | |
| CL-9X96-G | 2 x 9 x 96 | KxB | |
| CL-9X120-G | 2 x 9 x 120 | KxB | |
| CL-9X144-G | 2 x 9 x 144 | KxB | |
|
Fence Height cm |
Fence Length(2m) | Fence Length(2.5m) | ||||||||
| Wire Gauge |
Wire Diameter mm |
Opening cm |
Weight kg/piece | Fixing Pole | Wire Gauge | Wire Diameter mm | Opening cm | Weight kg/piece | Fixing Pole | |
| Weight kg/set | Weight kg/piece | |||||||||
| 60 | 10#/8# | 3.2 4 | 5X12 | 6.5 | 1.9 | 10#/8# | 3.2 4 | 5X12 | 8.6 | 1.9 |
| 80 | 10#/8# | 3.2 4 | 5X12 | 7.5 | 2.3 | 10#/8# | 3.2 4 | 5X12 | 9.9 | 2.3 |
| 100 | 10#/8# | 3.2 4 | 5X12 | 8.5 | 2.7 | 10#/8# | 3.2 4 | 5X12 | 11.2 | 2.7 |
| 120 | 10#/8# | 3.2 4 | 5X12 | 9 | 3.1 | 10#/8# | 3.2 4 | 5X12 | 11.9 | 3.1 |
| 150 | 10#/8# | 3.2 4 | 5X12 | 11 | 3.7 | 10#/8# | 3.2 4 | 5X12 | 14.5 | 3.7 |
| 180 | 10#/8# | 3.2 4 | 5X12 | 12.5 | 4.3 | 10#/8# | 3.2 4 | 5X12 | 16.5 | 4.3 |
| 200 | 10#/8# | 3.2 4 | 5X12 | 13.5 | 4.7 | 10#/8# | 3.2 4 | 5X12 | 17.8 | 4.7 |
Application:
Diamond wire mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing.
Applications: Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
Chain link mesh fence processing
