Secondary Retention 1.2mm Fall Protection Netting For Lights / Floodlight

Secondary Retention for Lights / Floodlight Safety Net, Drops Prevention / Drops Netting

Drop Preventing Net Description

Dropped objects are a major source of incidents in heavy industries. In the drilling industry offshore dropped objects are listed in the top ten of most frequent incidents. By securing overhead fixtures using secondary locking devices and additional securing techniques incidents are prevented and risk for personnel is reduced significantly.

Dropped objects are prevented using secondary retention nets. These specifically designed safety nets secure, enclose and tether overhead fixtures with the purpose to prevent a fixed item from falling when its primary attachment fails. The nets are designed for onshore and offshore installations.

The nets can for example enclose and tether overhead fixtures, such as; lights, beacons, speakers, self-retracting lifelines, CCT’s, anodes, pipe clamps and other items that are located above personnel and critical equipment.

The nets fully encloses the item being secured, while the integrated securing cable attaches around a structural attachment point, preventing both the item and fixture components from dropping or falling.

Drop safe nets are made out of high grade stainless steel. Grade stainless steel Aisi316 is the preferred steel for use in marine environments because of its greater resistance to pitting corrosion than other grades of steel. A carabiner hook will make it easy to attach the unit to a secondary retention point.

Drop Preventing Net Specification

Drop Preventing Net Normally Size

Size: 30*35cm,30*60cm,35*60cm,50*70cm,100*70cm,100*80cm,82.5*120cm, other size could be customized.
Type: Stainless Steel ferrule type
Weight: according to cable diameter and hole size/aperture
Packing: export standard carton / wooden case
Specifications: Cable diameter: 1.0mm,1.2mm,1.5mm,1.6mm, other size could be customized
Color: Black, stainless steel original color

Enhanced Features of the Dropped Object Prevention Nets

• The dropped object prevention nets are manufactured from high grade stainless steel compliant with AISI316, which is the material
• of choice for use in marine environments. This material is corrosion resistant and has a greater resistance to pitting than other
• grades of steel.
• Other aspects that render the dropped object prevention nets of exceptionally high quality include:
• * Designed and tested to function at as much as five times the product Safe Working Load (SWL)
• * Capable of withstanding extremely high temperatures of up to 500°C
• * Capable of withstanding extremely low temperatures, as low as -40°C
• * Able to retain most fixture mounting brackets, as long as the Safe Working Load (SWL) is not exceeded
• * All wire and component are manufactured from SUS/AISI 316 stainless steel
• * Available for a wide range of fixtures. Common designs are also available

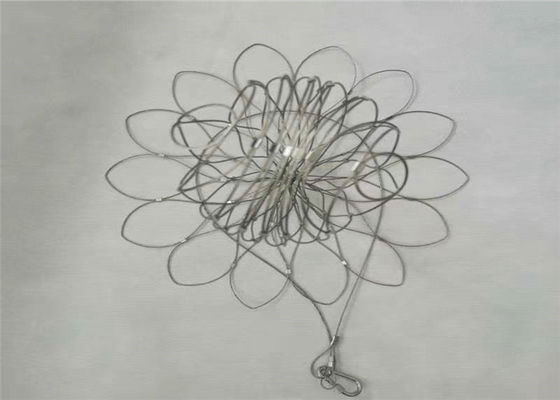

Detailed Image of Stainless Steel Drop Preventing Net
