Balustrade And Railing Protective 3.2mm Ferrule Rope Mesh

Balustrade And Railing Protective 3.2mm Ferrule Rope Mesh

Balustrade And Railing Protective 3.2mm Ferrule Rope Mesh
video
Balustrade And Railing Protective 3.2mm Ferrule Rope Mesh
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: CE
Model Number: WRM
Payment & Shipping Terms:
Minimum Order Quantity: 5 Square Meters
Price: Negotiated
Packaging Details: Package film for each piece,Several pieces packed in 1 carton
Delivery Time: 7-10 Days After Get The Payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Square Meters Per Week
Contact Now
Detailed Product Description
Feature: Handwoven Material: SS304, SS316, SS316L
Mesh Eye Size: 25x25Mm -100 X100 Mm Or Bigger Product Name: Balustrade And Railing Protective 3.2mm Ferrule Rope Mesh
Cable Net Diameter: 1.2-3.2mm Mesh Type: Ferrule & Knitted Wire Rope Mesh
Length: Customized Shipping: By Air Or By Express(DHL,TNT,EMS,FedEx)
High Light:

railing protective ferrule rope mesh

,

balustrade protective ferrule rope mesh

,

3.2mm ferrule rope mesh

Balustrade And Railing Protective Stainless Steel Wire Rope Mesh Net







Wire Rope Mesh Net  Description



Excellent Flexibility Stainless Steel Wire Rope Mesh For Staircases

Product Type : Stainless Steel Wire Rope Mesh ;

Material : Stainless Steel ;

Material Grade : AISI 316 ;

Wire Rope Thickness : 1.6 mm or 1.5 mm ;

Mesh Aperture : wide 60 mm by high 105 mm ;

Mesh Type : Ferruled ;



Mesh can be applied in either a vertical or horizontal direction dependent the balustade or railing design ;



Finished diamond mesh style when it is strectched at 60 degree angle ;




Wire Rope Mesh Net Specification



Wire Rope Mesh Construction Wire Rope Mesh Diameter Wire Rope Mesh Opening
7x19 1/8'' 120x208mm
7x19 1/8'' 100x173mm
7x19 1/8'' 90x156mm
7x7 3/32'' 100x173mm
7x7 3/32'' 90x156mm
7x7 3/32'' 100x173mm
7x7 3/32'' 90x156mm
7x7 5/64'' 80x139mm
7x7 5/64'' 70x121mm
7x7 5/64'' 80x139mm
7x7 5/64'' 70x121mm
7x7 1/16'' 60x104mm
7x7 1/16'' 51x87mm
7x7 1/16'' 70x121mm
7x7 1/16'' 51x87mm
7x7 3/64'' 80x139mm
7x7 3/64'' 70x121mm
7x7 3/64'' 60x104mm
7x7 3/64'' 50x87mm





Wire Rope Mesh Net Benifits



  1. Unique design idea, X tend mesh style
  2. Flexible, elegant, discreet, filigreed, multifunctional.
  3. Corrosion resistant,allows strong airflow.
  4. Fully pro-enviroment, recyclable, no toxic and flammable.
  5. Easy installation
  6. Once steel cable mesh is using, maintenance free, don't ask any special cleaning or coating.
  7. Long use life



Wire Rope Mesh Net Characters:



  1. Building Facade screens,
  2. Green wall systems

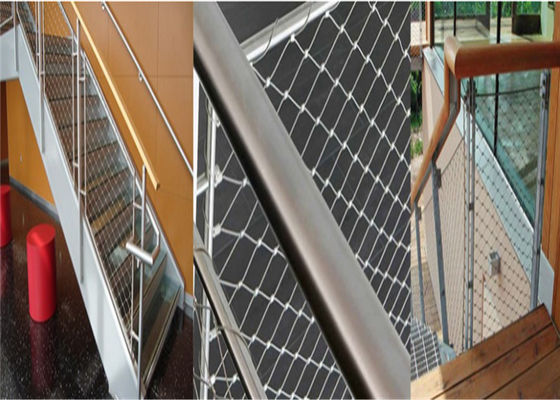

  3. Balustrade & Railing
  4. Bird protection netting,
  5. Security platform fence. Isolate fence,Garden fence,
  6. Animal enclosures in zoo

Balustrade And Railing Protective 3.2mm Ferrule Rope Mesh 0Balustrade And Railing Protective 3.2mm Ferrule Rope Mesh 1
