Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service
Professional for Chain Link Fence Fabric and Parts&Metal Meshes.
High Quality,resonable price and best service

|
| Place of Origin: | CHINA |
| Brand Name: | XR |
| Certification: | CE |
| Model Number: | CLFM |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | To Be Negotiation |
| Packaging Details: | Machine Package With Plastic Film Outside For Main Machine, Wooden Box Or Carton Box For Main Accessories And Tools, Or As Customer Demand |
| Delivery Time: | 10-15 Days After Get The Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Sets Per Month |
| Motor Power: | 11KW | Wire Diameter: | 1.5-4.5Mm |
|---|---|---|---|
| Type: | PLC Control | Application: | River Banks |
| Hole Size: | 30X30-108X108(Mm) | Width: | 1-4M |
| High Light: | plc automatic chain link machine,4.5mm automatic chain link machine,30x30 automatic chain link machine |
||

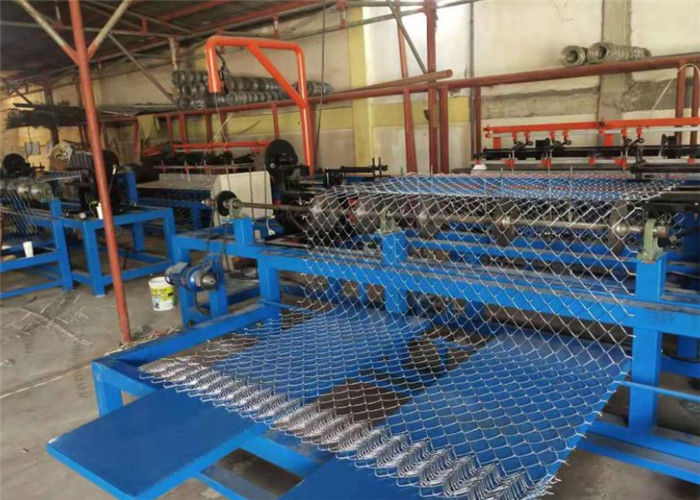

PLC Control Automatic Chain Link Machine , Fencing Wire Making Machine For River Banks
Chain Link Machine Description
The finished chain link mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing. Especially, well suitable for a wide range of application, for example for enclosing Lawn, Road. Steel diamond mesh has a heavy galvanized coating to ensure a long life.
Chain Link Machine Characteristics
1. The machines are controlled by touch screen, famous brand electrical components. Easy to operate. Electrical appliances are
durable and have a low failure rate. About our main machine, we have adopted the Servo Motor and Reducer. Work efficiency
increased by three times, saving electricity and high output.
2. The machines can implement three types of automatic locking: Knuckled and twisted, or knuckle, or twisted.
3.The machines are equipped with a rolling net device, which can reduce costs, of course, it can be selected according to your needs.
Chain Link Machine Technique Parameters
| Feeding No. | One | Two |
| Wire Diameter(MM) | 1.5-4.0 | 1.8-4.0 |
| Mesh Size(MM) | 25*25-140*140 | 35*35-100*100 |
| Net Width(M) | 2-6 (can choice) | 2-6 (can choice) |
| Rated Voltage | 380V,50HZ | 380V,50HZ |
| Speed(m2/h) | 50-140 | 80-160 |
Chain Link Machine Advantage
1. PLC control
2. Material feeding by servo motor
3. Single die single spiral
4. Automatically weaving mesh
5. The chain link fence is automatically wond to form rolls when the desired length is manufactured.
6. Fence side can be twisted or knuckled as required
