304L 1 Micron 5 Micron 10 Micron Stainless Steel Filter Mesh

Product Details:

Place of Origin:	CHINA
Brand Name:	XR
Certification:	CE
Model Number:	SSWMF

Payment & Shipping Terms:

Minimum Order Quantity:	1 EA
Price:	Negotiated
Packaging Details:	Water-Proof Plastic Film And Then Wooden Case
Delivery Time:	7-10 Days After Get Your Payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5000 Units Per Week

Contact Now

All Products

Chain Link Fence Fabric (109)

Chain Link Fence Fittings (102)

Chain Link Mesh Fence (104)

Stainless Steel Wire Rope Mesh (159)

Stainless Steel Filter Mesh Screen (79)

Farm Fence Wire Tensioner (51)

Razor Wire Concertina (86)

Decorative Metal Mesh (38)

Expanded Metal Mesh (13)

Welded Wire Gabions (11)

Chain Link Fence Band (16)

Chain Link Fence Rail End (9)

Chain Link Fence Post Caps (8)

Wire Mesh Machine (19)

Barbed Wire Extension Arm (24)

Stainless Steel Safety Gloves (27)

Perforated Metal Mesh (12)

Detailed Product Description

Layer:	Single Layer,Double Layer,Multilayers	Shape:	Round Shape And Rectangle Shape
Roll Size:	30 M Length	Material:	Carbon Steel, Stainless Steel 304,316
Application:	Filteration And Seperation	Surface:	Smooth Screen
High Light:	304L stainless steel filter mesh , 10 Micron Stainless Steel Filter Mesh , 1 micron stainless steel mesh

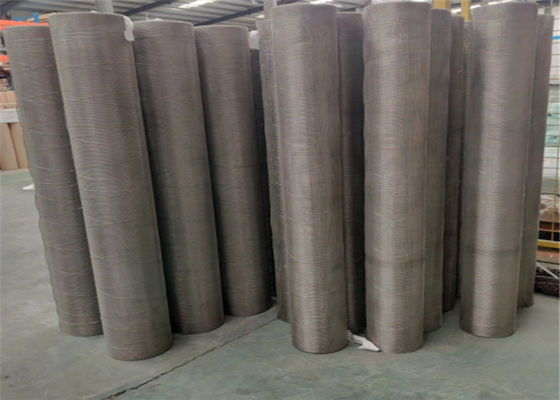

304L Stainless Steel Filter Mesh 1 Micron 5 Micron 10 Micron Stainless Steel Woven Mesh

Filter Mesh Brief Information

Wire diameter:0.025mm-1.8mm

Apeature: 0.038mm-10.9mm

Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.

Roll length:30m or 50m,any length available at request.

Sample:Free sample sent on request.

Performance : Corrosion-resisting, Wear-resisting, Tear-resisting.

Uses: Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, enviroment protection,mine, airspace, paper-making, electronic, metallurgy etc.

Filter Mesh Detailed Parameter

Material	304L,304
Thickness	0.3-12.0mm
Mesh size	plain weave and twill weave from 5 to 600 mesh.
Wire diameter	0.018-2.03mm
Weaving Type	Plain weave, twilled weave, Dutch weave.
Packaging Details	inner kraft, outside plastic cloth, put into wooden pallet or case
Feature	High tension,high precision,low elongation,high yield strength,high wear resistance,static electricity,thermal resistance
Application	Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Wire Mesh Filter Cloth Dutch Woven
Gauge No.	Mesh/Inch (Warp × Weft)	Wire Diameter (Warp × Weft)	Reference Aperture (um)	Weight/sq. (kg)
32#	8 × 62	0.63mm × 0.45mm	300	5.42
40#	10 × 79	0.50mm × 0.355mm	250	3.16
48#	12 × 64	0.58mm × 0.40mm	280	2.9
55#	14 × 88	0.40mm × 0.30mm	180	2.54
76#	19 × 140	0.315mm × 0.20mm	140	1.88
80#	20 ×300	0.35mm × 0.20mm	-	3.6
95#	24 × 110	0.355mm × 0.25mm	120	2.45
100#	25 × 140	0.28mm × 0.20mm	100	1.95
120#	30 × 150	0.25mm × 0.18mm	80	1.68
140#	35 × 175	0.224mm × 0.16mm	71	1.52
160#	40 × 200	0.20mm × 0.14mm	60	1.40
180#	45 × 250	0.16mm × 0.112mm	56	1.09
200#	50 × 250	0.14mm × 0.11mm	53	1.04
220#	55.5 × 280	0.14mm × 0.10mm	50	0.92
240#	65 × 330	0.11mm × 0.08mm	36	0.71
280#(1)	70 × 350	0.11mm × 0.08mm	35	0.72
280#(2)	70 × 385	0.11mm × 0.07mm	32	0.75
300#	78 × 700	0.11mm × 0.08mm	30	1.39
315#(1)	80 × 400	0.10mm × 0.065mm	40	0.62
315#(2)	80 × 600	0.10mm × 0.06mm	-	-
315#(3)	80 × 800	0.15mm × 0.04mm	-	-
320#	81 × 780	0.10mm × 0.07mm	30	1.22
354#	90 × 550	0.12mm × 0.05	-	-
Roll width: 1-1.6m

Wire Mesh Filter Cloth Dutch Woven
Gauge No.	Mesh/Inch (Warp × Weft)	Wire Diameter (Warp × Weft)	Reference Aperture (um)	Weight/sq. (kg)
360#	91 × 787	0.10mm × 0.10	25	1.24
400#	101 × 900	0.10mm × 0.10	20	1.22
472#	120 × 400	0.10mm × 0.10	-	-
500#	127 × 1100	0.07mm × 0.07	17	0.81
630#	160 × 1500	0.063mm × 0.063	15	0.62
650#(1)	165 × 400	0.017mm × 0.017	-	-
650#(2)	165 × 600	0.017mm × 0.017	-	-
650#(3)	165 × 800	0.017mm × 0.017	25	-
650#(4)	165 × 1100	0.017mm × 0.017	-	-
650#(5)	165 × 1400	0.017mm × 0.017	16	0.76
685#	174 × 700	0.063mm × 0.063	13	0.61
787#(1)	200 × 600	0.071mm × 0.071	-	-
787#(2)	200 × 800	0.071mm × 0.071	-	-
787#(3)	200 × 1400	0.071mm × 0.071	12	0.8
795#	202 × 1760	0.05mm × 0.05	10	0.6
850#	216 × 1860	0.045mm × 0.045	9	-
1000#	254 × 2000	0.04mm × 0.04	8	0.5
1125#	285 × 2235	0.036mm × 0.036	7	-
1228#	312 × 2100	0.035mm × 0.035	-	-
1250#	318 × 2235	0.036mm × 0.036	-	-
1280#	325 × 2300	0.035mm × 0.035	5	0.45
1575#	400 × 3100	0.035mm × 0.035	3	-
Roll width: 1-1.6m

Filter Mesh Screen Benifits

Smooth surface with no sharp edges, burrs or acute angles.
Anti-abrasive & anti-corrosive in nature, and high filtration capacity.
Available in different size and variants according customers order.

Filter Mesh Application

Stainless Steel Dutch Woven Wire Cloth and other materials are utilized as filter fittings for chemical industry,
medicine,
petroleum,
telecommunication,
scientific research units and so on.
