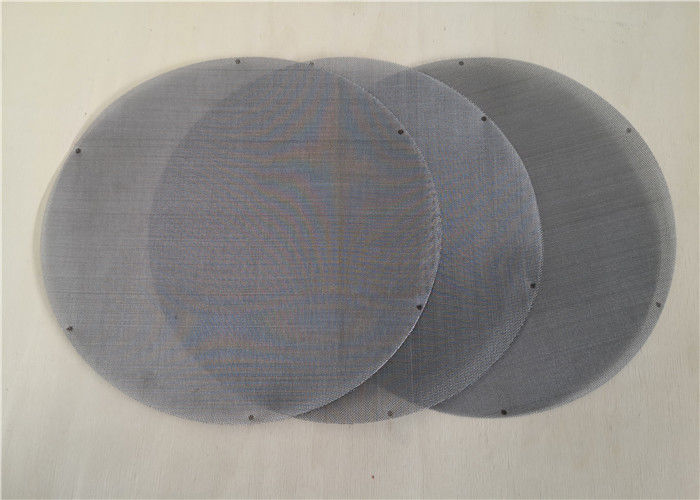

Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine

Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine

  • Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine
  • Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine
  • Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine
Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine
Product Details:
Place of Origin: CHINA
Brand Name: XR
Certification: ISO9001
Model Number: FS-005
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Be Negotiation
Packaging Details: Plastic Film And Then Wooden Box
Delivery Time: 5-8 Days After Get The Payment
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 30000 Pcs Per Week
Contact Now
Detailed Product Description
Technique: Spot Welding Layers: 2,3,4,5,6 Layers
Material: Stainless Steel Frame Style: Spot Welding
Packs Diameter: 20Mm-900Mm Characteristics: Precise Fitting Filter Elements
High Light:

stainless steel mesh sieve

,

filter mesh stainless steel

Multilayer Extruder Screen Packs with Spot Welded Packs For Rubber Machine





Multilayer Extruder Screens packs with spot welded wire mesh filter packs are excellent in any field where a specific graduation filtration is required.

Another advantage is that it stops single screen filters being placed into the extruder incorrectly. For example a pack consisting of three meshes could consist of a 10mesh / 20mesh / 10mesh; meaning that whichever way the wire mesh filter is placed into the extruder head, it will work correctly.



Multilayer Extruder Screen packs are the different wire meshes cut to desired shapes and sizes, and then assembled properly and spot welded with each other to form multilayer packs.

Multilayer screen packs are extra strong, sturdy and convenient for problem free processing. They are assembled in proper sequence to eliminate operator error. The screen pack even prevents any foreign particles in the molten mass from going through the extrusion process. This type of extruder screen is suitable for fine extrusion, and it makes extrusion more clean and clear.

Extruder Screen Mesh packs are mainly made from high quality SS 316, SS304L meshes ranging from 4 mesh to 500 mesh up to 5 microns, and used for Plastic and Rubber Industry. Their edges styles cover spot welded edges.

Extruder screen packs specification

  • Layers: 2 , 3 ,4, 5 layers, or other more layers.
  • Material: Stainless steel(ss302, ss304, ss316, ss316L) woven wire cloth, copper wire cloth, galvanized wire mesh, aluminum alloy, and nickel alloys.
  • Shapes: round, oval, rectangle, elliptical shape.
  • Packs Diameter: 20mm - 900mm
  • Frame Style: spot welding

Characteristics: high strain ability, filtration capacity ,precise fitting filter elements , optimum cost-performance ratio, long lifespan.

Standard Woven mesh size

Mesh No
Aperture (mm)
Diameter (mm)
Open Area %
Weight Kg/M2
2 11.100 1.600 76.40 2.54
3 6.867 1.600 65.80 3.82
3 6.467 2.000 58.30 5.96
4 5.450 0.900 73.70 1.61
4 5.100 1.250 64.50 3.11
4 4.750 1.600 56.00 5.09
5 4.080 1.000 64.50 2.48
6 3.333 0.900 62.00 2.41
6 2.983 1.250 49.70 4.66
7 2.919 0.710 64.69 1.76
8 2.718 0.457 73.28 0.84
8 2.465 0.710 60.30 2.00
8 2.275 0.900 51.30 3.22
10 1.980 0.560 60.80 1.56
10 1.830 0.710 51.91 2.52
10 1.640 0.900 41.69 4.05
12 1.667 0.450 62.00 1.21
12 1.557 0.560 54.10 1.87
14 1.564 0.250 74.34 0.44
14 1.414 0.400 60.80 1.11
14 1.364 0.450 56.50 1.41
16 1.308 0.280 67.84 0.63
16 1.233 0.355 60.30 1.00
16 1.188 0.400 56.00 1.27
16 1.138 0.450 51.30 1.61
16 1.028 0.560 41.89 2.51
18 1.177 0.234 69.58 0.49
18 1.011 0.400 51.30 1.43
18 0.961 0.450 46.39 1.82
18 0.911 0.500 41.69 2.25
20 0.915 0.355 51.90 1.25
20 0.82 0.450 41.7 2.01
20 0.770 0.500 36.76 2.50
22 0.935 0.220 65.52 0.53
24 0.658 0.400 38.69 1.92
28 0.552 0.355 37 1.75
30 0.682 0.165 64.82 0.41
30 0.623 0.224 54.1 0.75
30 0.567 0.280 44.8 1.17
34 0.497 0.250 44.3 1.06
36 0.482 0.224 46.58 0.90
36 0.456 0.250 41.7 1.12
40 0.411 0.224 41.9 1.00
44 0.357 0.220 38.30 1.06
50 0.308 0.200 36.8 0.99
60 0.263 0.160 38.7 0.76
70 0.287 0.076 62.50 0.20
70 0.223 0.140 37.72 0.69
70 0.203 0.160 31.3 0.89
80 0.193 0.125 36.8 0.62
80 0.178 0.140 31.3 0.78
84 0.239 0.063 62.67 0.17
84 0.212 0.090 49.4 0.34
100 0.198 0.056 60.77 0.16
100 0.154 0.100 36.8 0.50
100 0.142 0.112 31.3 0.62
120 0.149 0.063 49.33 0.24
120 0.122 0.090 33 0.48
130 0.152 0.043 60.83 0.12
145 0.130 0.045 55.22 0.15
145 0.112 0.063 41.01 0.29
150 0.104 0.065 37.96 0.32
160 0.123 0.036 59.79 0.10
165 0.104 0.050 45.6 0.20
180 0.111 0.030 62.00 0.08
180 0.091 0.050 41.7 0.22
200 0.099 0.028 60.77 0.08
200 0.087 0.040 46.9 0.16
200 0.077 0.050 36.8 0.25
230 0.074 0.036 45.4 0.15
250 0.062 0.040 36.8 0.20
270 0.058 0.036 38.1 0.17
300 0.055 0.030 41.7 0.13
300 0.049 0.036 33 0.19
325 0.050 0.028 41.80 0.13
325 0.048 0.030 38 0.15
325 0.042 0.036 29.1 0.21
350 0.043 0.030 34.4 0.16
400 0.039 0.025 36.8 0.12
400 0.034 0.030 27.8 0.18
500 0.026 0.025 25.79 0.16

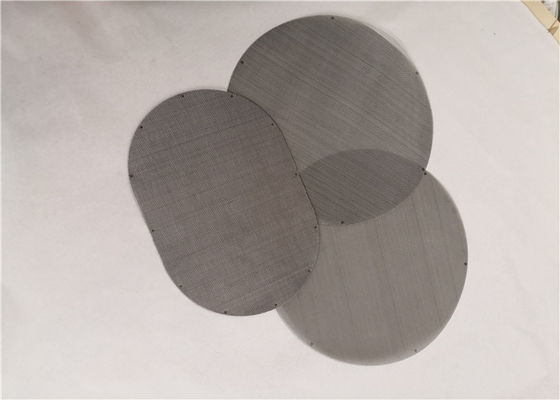

Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine 0

How to spot welded the multilayer extruder screen packs?
This multilayer extruder screens packs are welded together at precise points. They are excellent for use in any filtration and assembled in proper sequence to eliminate operator error. The number and location of spot welds can be customized for your process

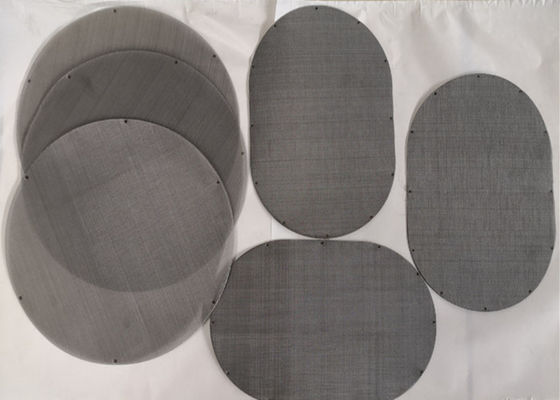

Multilayer Extruder Screen Packs With Spot Welded Packs For Rubber Machine 1

Extruder Screen Pack Application:


Multilayer extruder screen pack filters are widely use in very fine and thin extrusion process for high quality petrochemical, plastic, rubber, chemical, pharmaceutical, brewage, beverage, aeronautic industries & also in water treatment plant, mechanical, food processing industries.



Other finishing services available include:

  • Slit to width rolls
  • Cut pieces
  • Fine blanking
  • Annealing
  • Degreasing
  • Ultra sonic cleaning
  • Calendering
  • Air plasma cutting
  • Laser cutting of complex shapes
